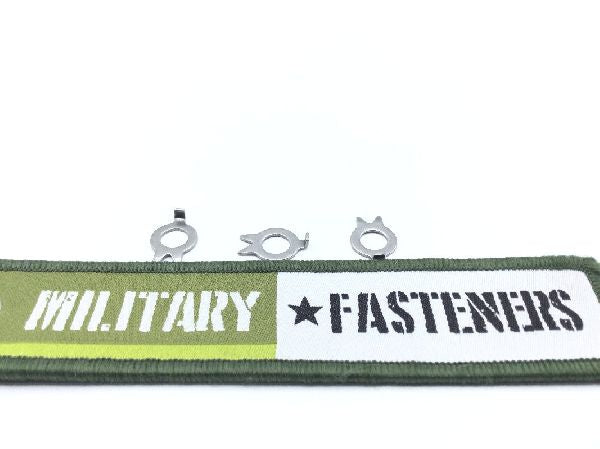

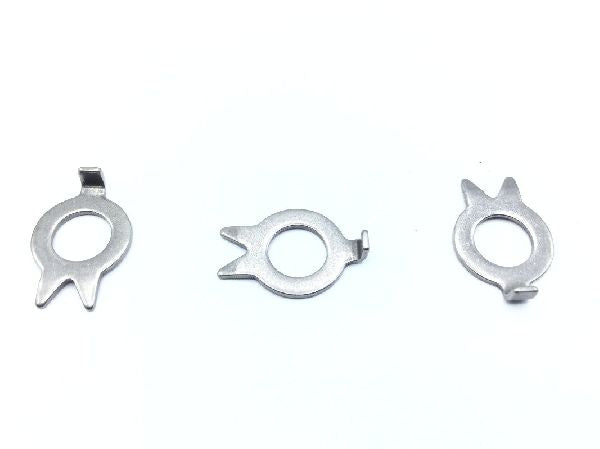

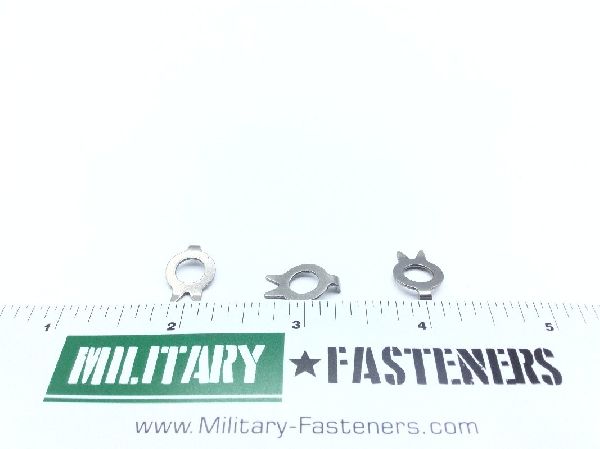

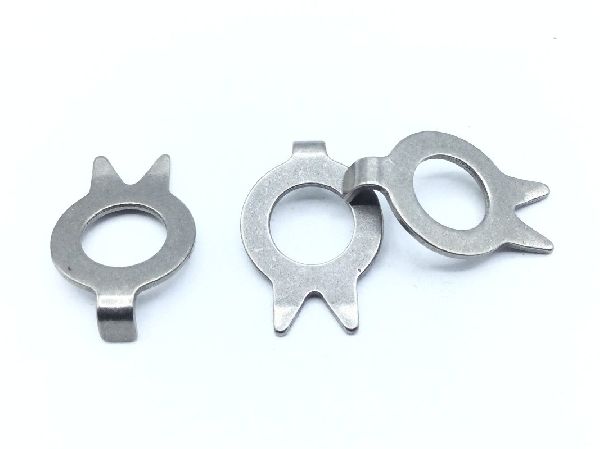

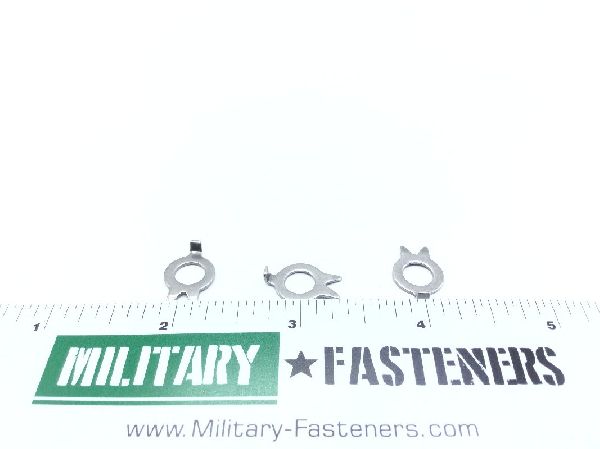

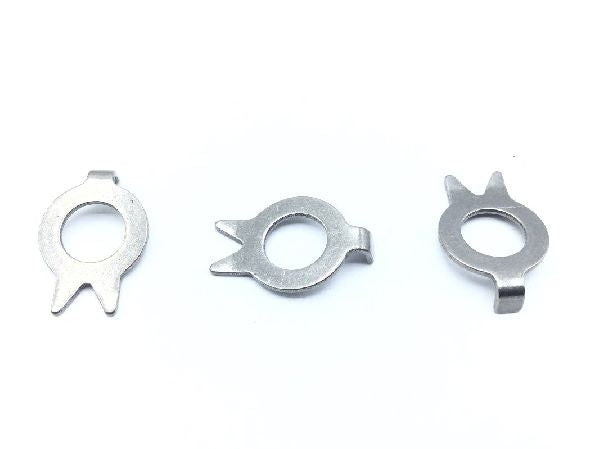

MS9276-10 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Material

Steel comp 321

Angle Between External Keys: Between 58.0 degrees and 62.0 degrees
Distance From Centerline To Inside Of Prebent Key: Between 0.265 inches and 0.275 inches
External Key Quantity: 3
External Prebent Key Length: Between 0.100 inches and 0.110 inches
External Prebent Key Width: Between 0.110 inches and 0.115 inches
External Tapered Key Width: Between 0.250 inches and 0.260 inches
Material Specification: Ams 5510 assn standard single material response
Material Thickness: Between 0.028 inches and 0.036 inches
Outside Diameter: Between 0.440 inches and 0.450 inches
Overall Distance Including Keys: Between 0.648 inches and 0.671 inches
Special Features: Both angular keys bent 15 degrees in opposite direction of prebent key
Split Key Length: 0.130 inches
Style Designator: Key
Hole Diameter: Between 0.255 inches and 0.260 inches
