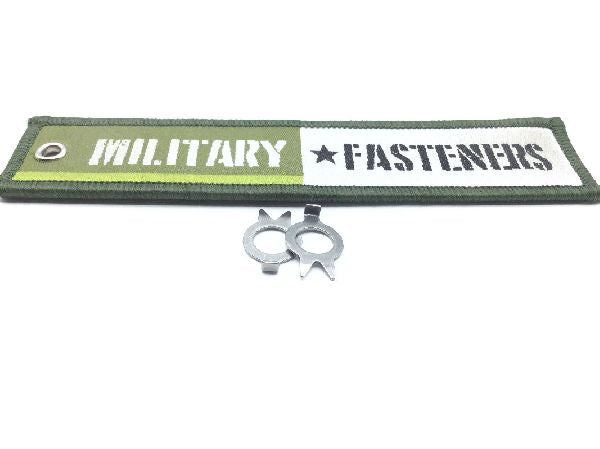

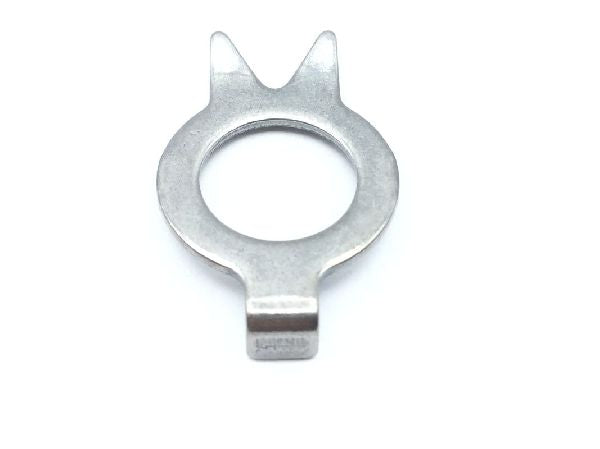

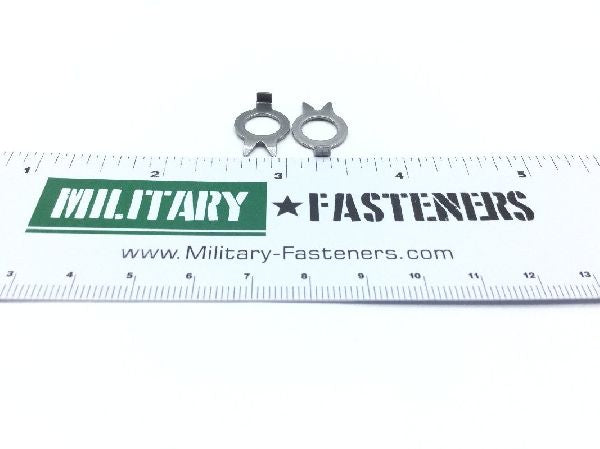

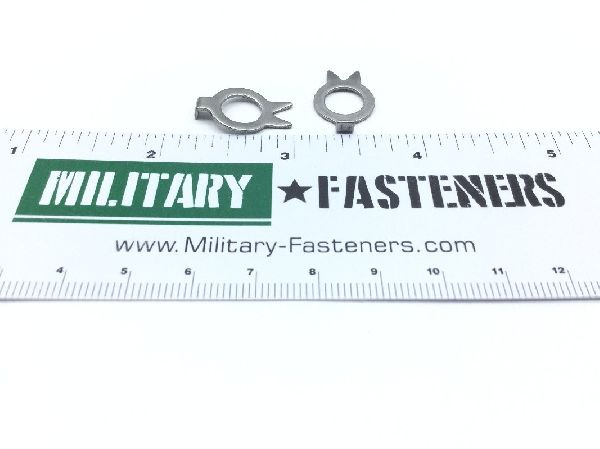

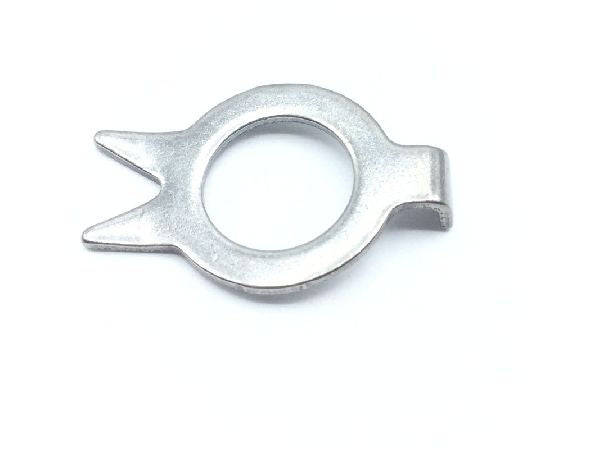

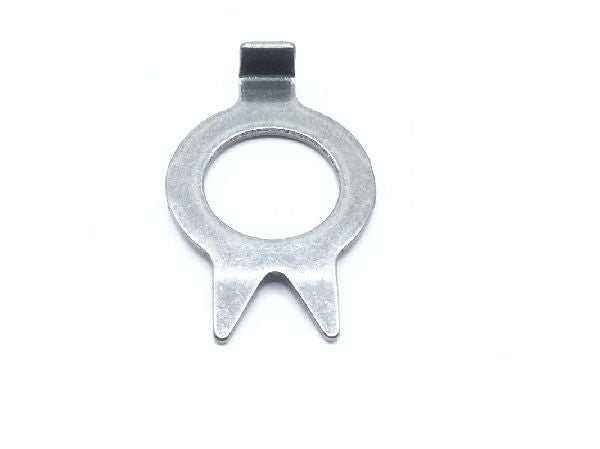

MS9276-11 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $2.01

Units per Pack 25

Price per Pack $50.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $50.25

Add item to quote

Surface Treatment

Ams 5510 assn standard single treatment response

Angle Between External Keys: Between 58.0 degrees and 62.0 degrees
Distance From Centerline To Inside Of Prebent Key: Between 0.325 inches and 0.335 inches
External Key Quantity: 3
External Prebent Key Length: Between 0.100 inches and 0.110 inches
External Prebent Key Width: Between 0.140 inches and 0.145 inches
External Tapered Key Width: Between 0.280 inches and 0.290 inches
Iii Material: Steel comp 321
Material Thickness: Between 0.028 inches and 0.036 inches
Outside Diameter: Between 0.495 inches and 0.505 inches
Overall Distance Including Keys: Between 0.763 inches and 0.791 inches
Special Features: Both angular keys bent 15 degrees in opposite direction of prebent key
Split Key Length: 0.160 inches
Style Designator: Key
Hole Diameter: Between 0.320 inches and 0.325 inches
