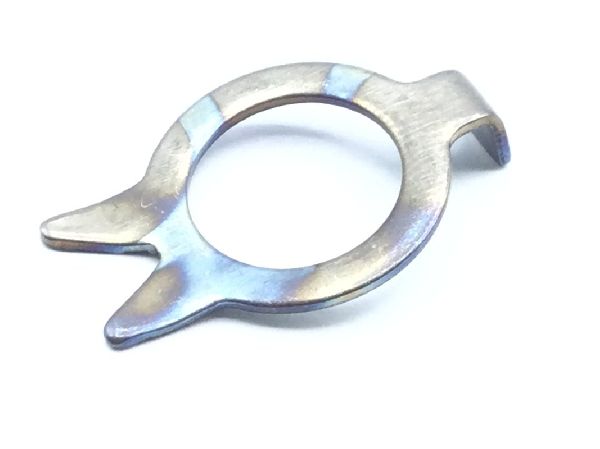

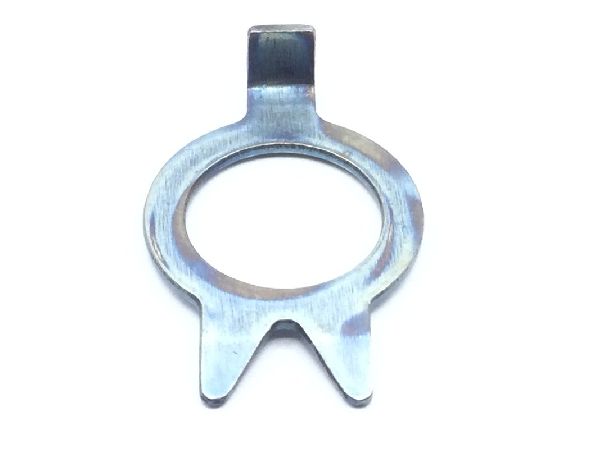

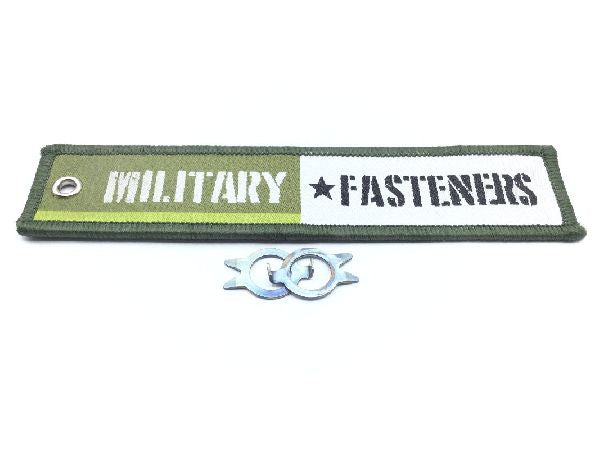

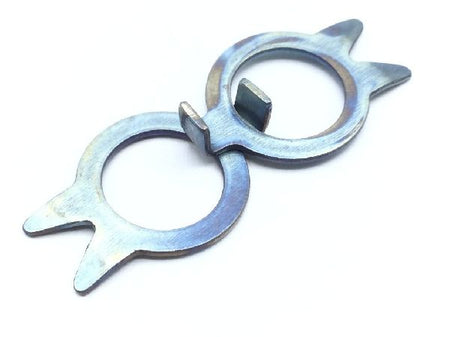

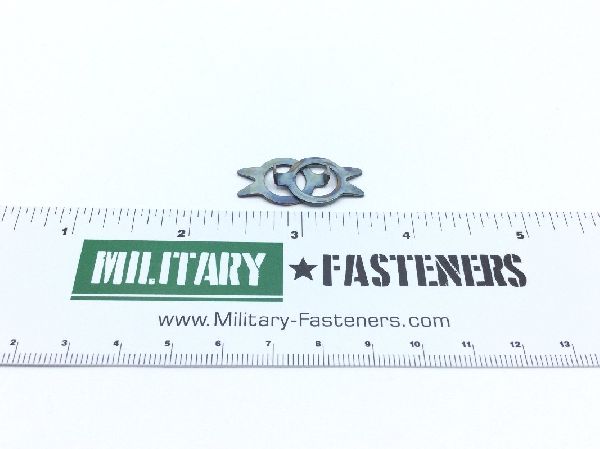

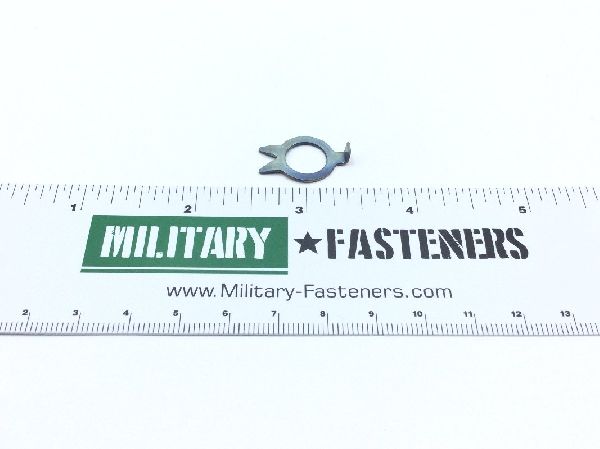

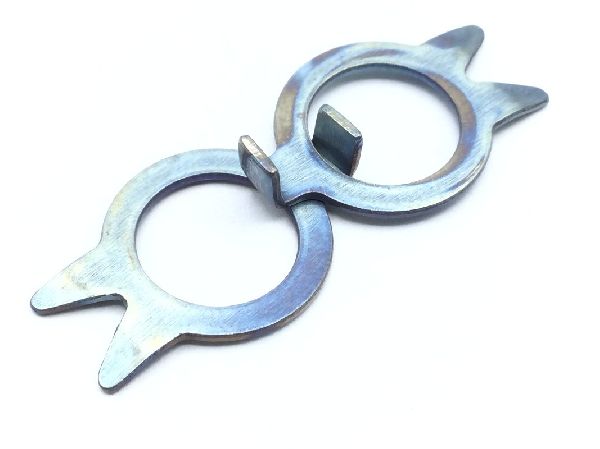

MS9276-12 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $4.46

Units per Pack 10

Price per Pack $44.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $44.60

Add item to quote

Angle Between External Keys: Between 58.0 degrees and 62.0 degrees
Distance From Centerline To Inside Of Prebent Key: 0.375 inches
External Key Quantity: 3
External Prebent Key Angle: 15.0 degrees
External Prebent Key Length: Between 0.140 inches and 0.150 inches
External Prebent Key Width: Between 0.140 inches and 0.145 inches
External Tapered Key Width: Between 0.320 inches and 0.330 inches
Iii Material: Steel comp 321
Material Specification: Ams5510 assn standard single material response
Material Thickness: Between 0.028 inches and 0.036 inches
Outside Diameter: Between 0.560 inches and 0.570 inches
Overall Distance Including Keys: 0.856 inches
Special Features: Both angular keys bent 15.0 degrees in opposite direction of prebent key
Split Key Length: Between 0.170 inches and 0.175 inches
Style Designator: Key
Hole Diameter: Between 0.390 inches and 0.395 inches
