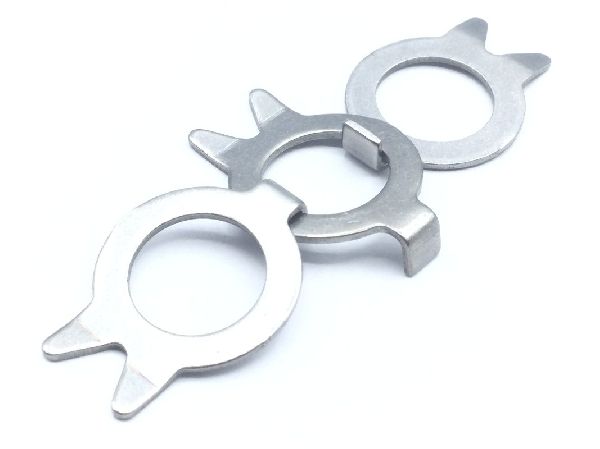

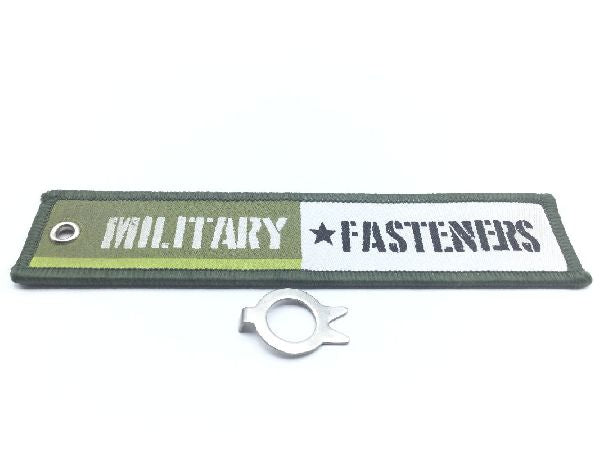

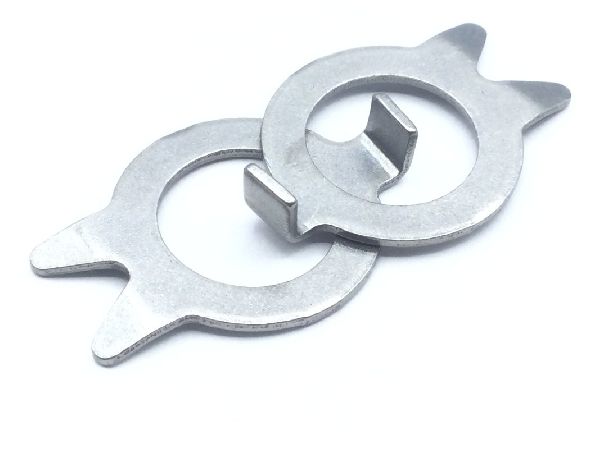

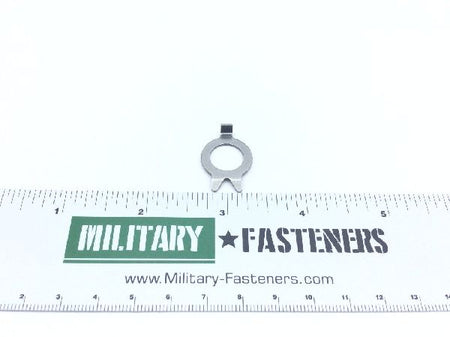

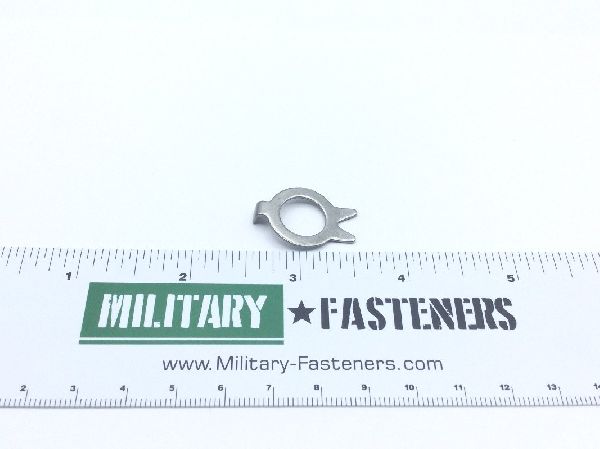

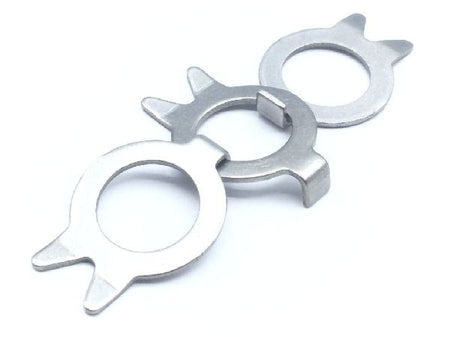

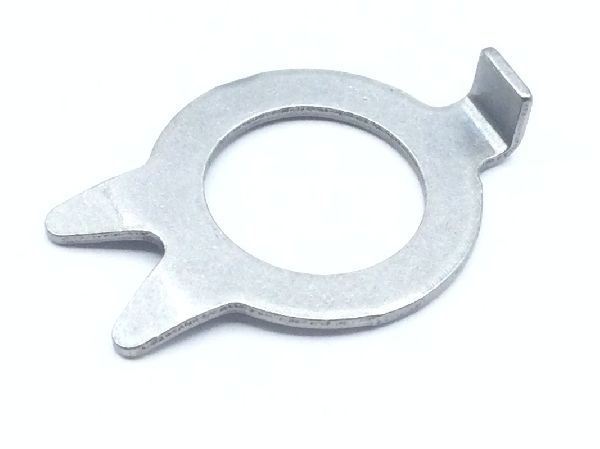

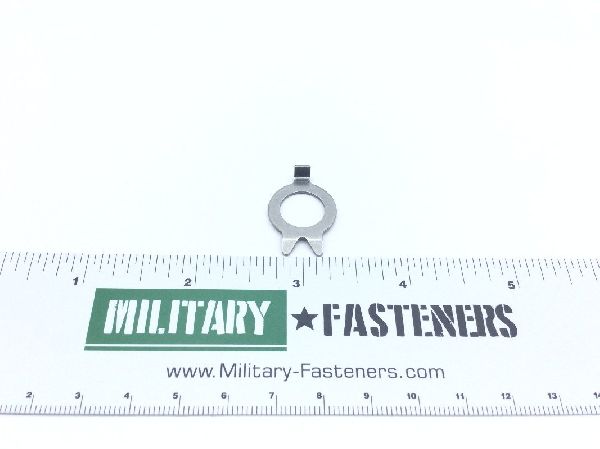

MS9276-13 Key Washer
- NSN
- 5310-00-899-2181
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 8112.29.0000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Angle Between External Keys
- Between 58.0 degrees and 62.0 degrees
- Distance From Centerline To Inside Of Prebent Key
- Between 0.415 inches and 0.425 inches
- External Key Quantity
- 3
- External Prebent Key Length
- Between 0.150 inches and 0.160 inches
- External Prebent Key Width
- Between 0.170 inches and 0.175 inches
- External Tapered Key Width
- Between 0.390 inches and 0.400 inches
- Iii Material
- Steel comp 321
- Material Specification
- Ams 5510 assn standard single material response
- Material Thickness
- Between 0.032 inches and 0.040 inches
- Outside Diameter
- Between 0.685 inches and 0.695 inches
- Overall Distance Including Keys
- Between 0.977 inches and 1.000 inches
- Special Features
- Both angular keys bent 15 degrees in opposite direction of prebent key
- Split Key Length
- 0.180 inches
- Style Designator
- Key
- Hole Diameter
- Between 0.450 inches and 0.455 inches
