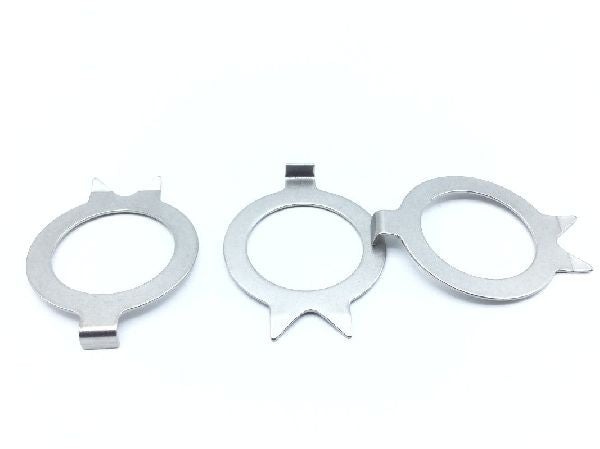

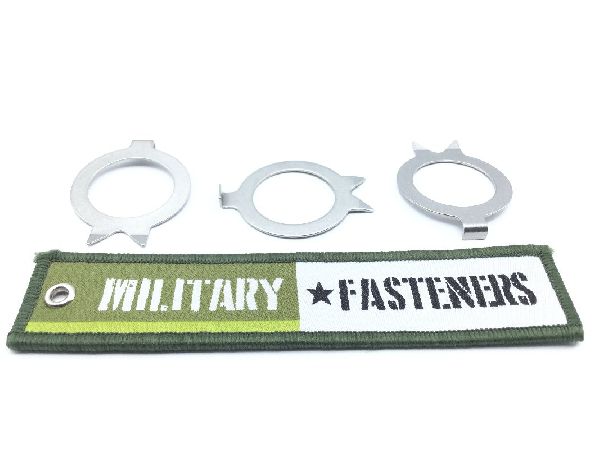

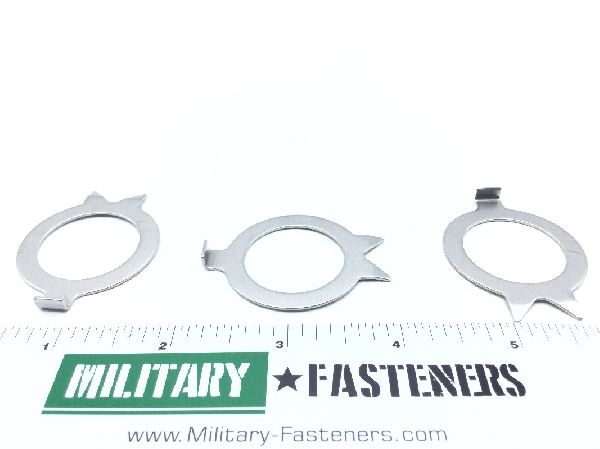

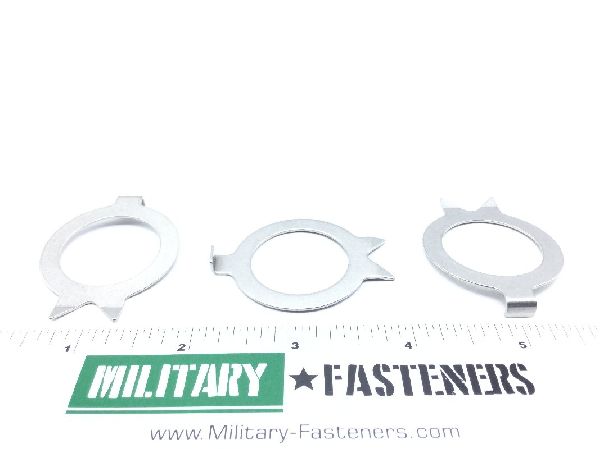

MS9276-19 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Angle Between External Keys: 90.0 degrees
Distance From Centerline To Inside Of Prebent Key: Between 0.865 inches and 0.875 inches
External Key Quantity: 1
External Prebent Key Angle: 15.0 degrees
External Prebent Key Length: Between 0.15 inches and 0.16 inches
External Prebent Key Width: Between 0.290 inches and 0.295 inches
External Tapered Key Width: Between 0.65 inches and 0.66 inches
Iii Material: Steel comp 321
Material Specification: Ams 5510 assn standard single material response
Material Thickness: Between 0.032 inches and 0.040 inches
Outside Diameter: Between 1.430 inches and 1.440 inches
Overall Distance Including Keys: 1.856 inches
Split Key Length: 0.235 inches
Style Designator: Key
Hole Diameter: Between 1.015 inches and 1.02 inches
