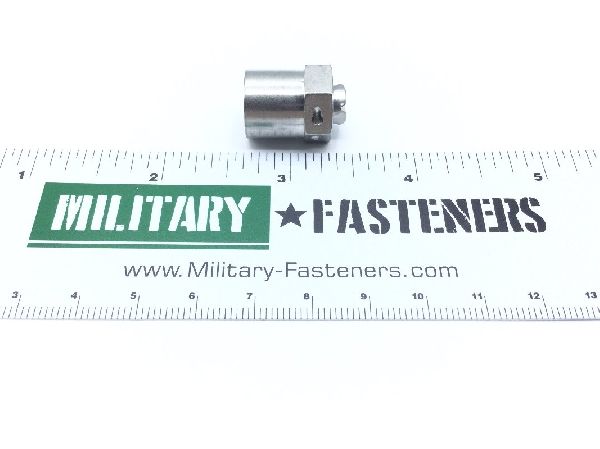

MS9314-04 Tube Cap Assembly

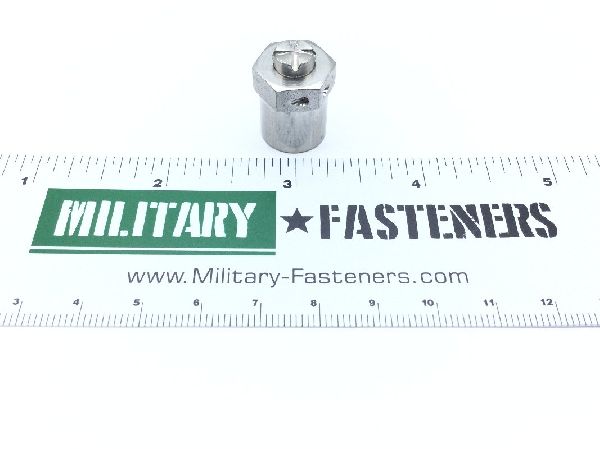

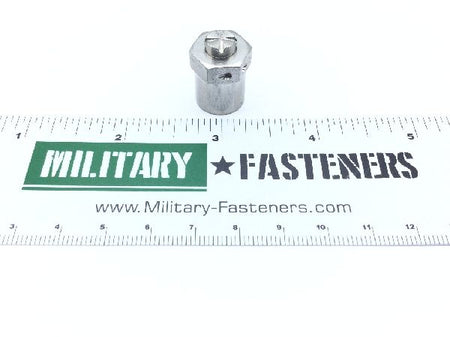

MS9314-04 Tube Cap Assembly (2)

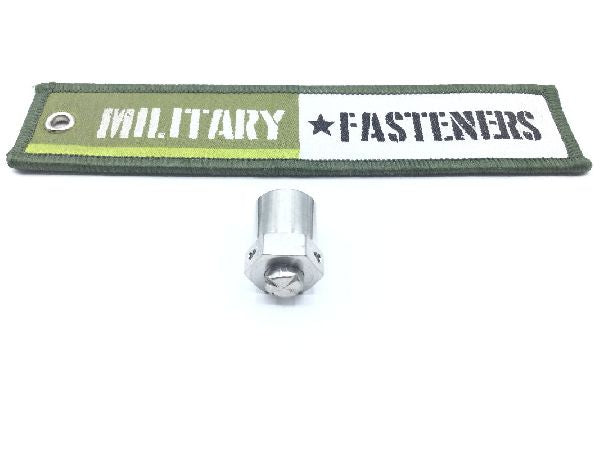

MS9314-04 Tube Cap Assembly (3)

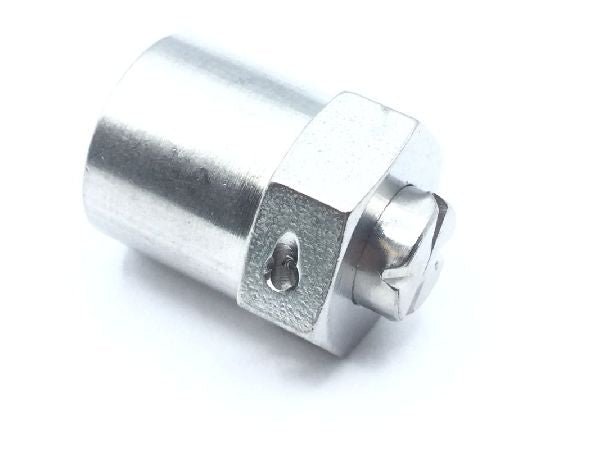

MS9314-04 Tube Cap Assembly (4)

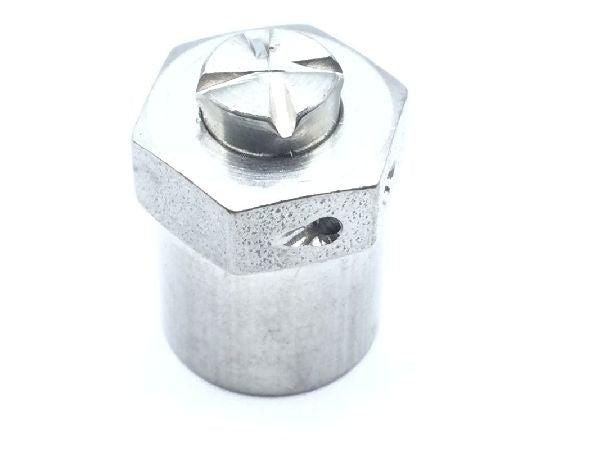

MS9314-04 Tube Cap Assembly (5)

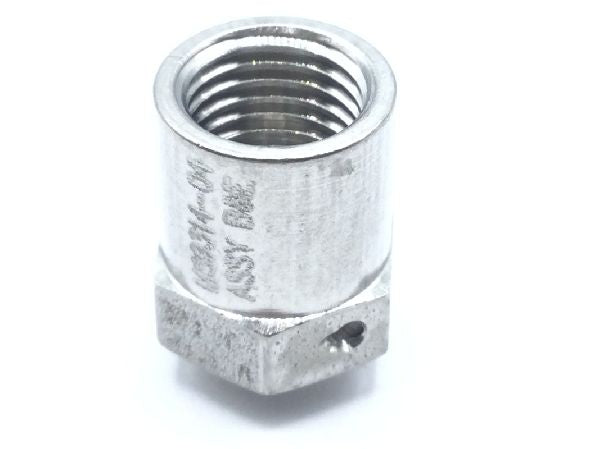

MS9314-04 Tube Cap Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9314-04 Tube Cap Assembly

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 347

Thread Class

3b internal

Thread Size

0.438 inches internal

Connection Style: Pressure seal flared
Material Specification: Ams 5646 assn standard single material response
Seat Angle: 37.0 degrees
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 0.250 inches
