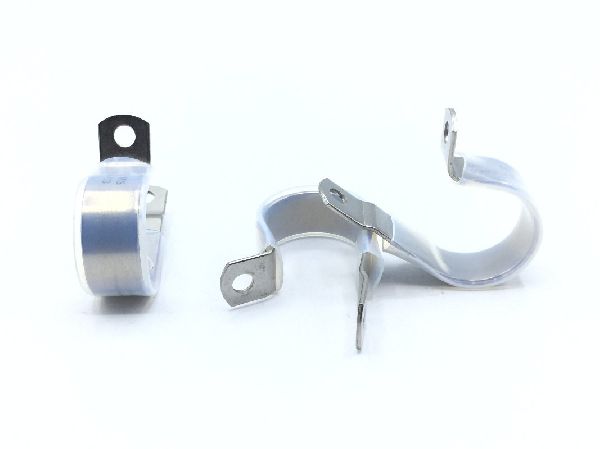

MS9349-13 Loop Clamp

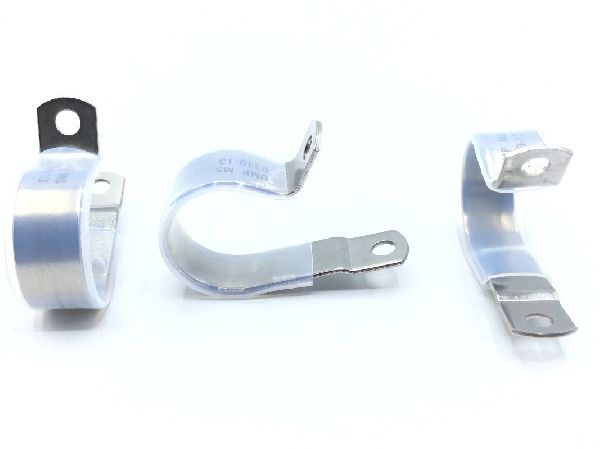

MS9349-13 Loop Clamp (2)

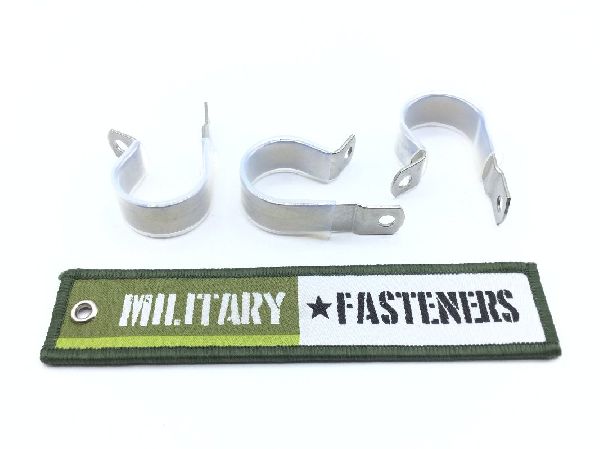

MS9349-13 Loop Clamp (3)

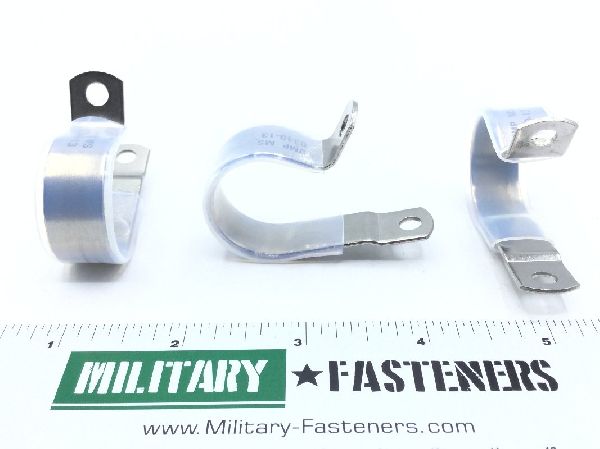

MS9349-13 Loop Clamp (4)

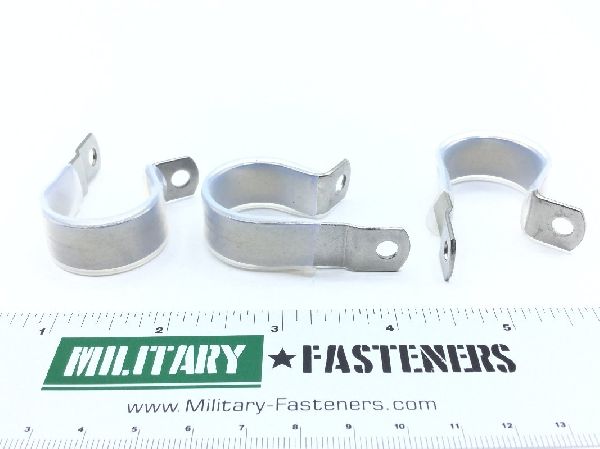

MS9349-13 Loop Clamp (5)
MS9349-13 Loop Clamp
MS9349-13 Loop Clamp (2)
MS9349-13 Loop Clamp (3)
MS9349-13 Loop Clamp (4)
MS9349-13 Loop Clamp (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9349-13 Loop Clamp

Product Series
MS
ECCN
9A991
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 321 band
Center To Center Distance Between Loop And Mounting Hole
0.877 inches
Cushioning Environmental Protection
Any acceptable
Distance From Loop Center To Tongue End
Between 1.090 inches and 1.100 inches
Loop Inside Diameter
0.875 inches
Material Specification
Ams 5510 assn standard single material response band
Material Thickness
0.051 inches
Overall Width
Between 0.484 inches and 0.516 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
