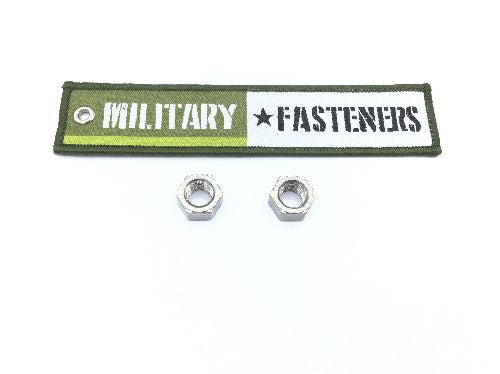

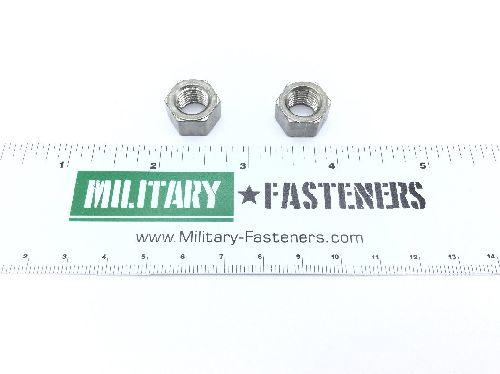

MS9356-12 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $38.73

Units per Pack 2

Price per Pack $77.46

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $77.46

Add item to quote

Material

Iron alloy 660

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Finish: 63.0 microinches
Bearing Surface Type: Washer faced
Countersink Angle: 90.0 degrees nut
Material Specification: Ams 5732 assn standard single material response or ams 5737 assn standard single material response
Nut Height: 0.328 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
