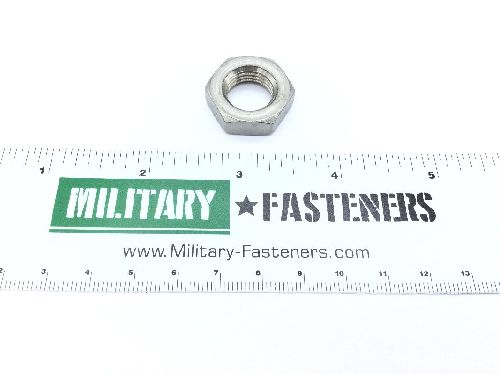

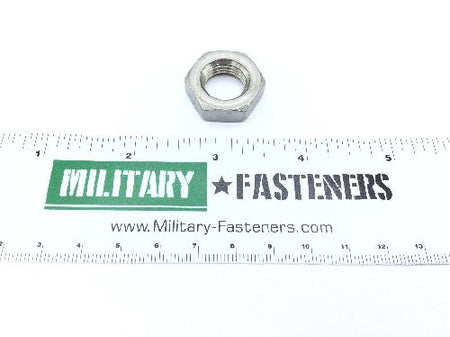

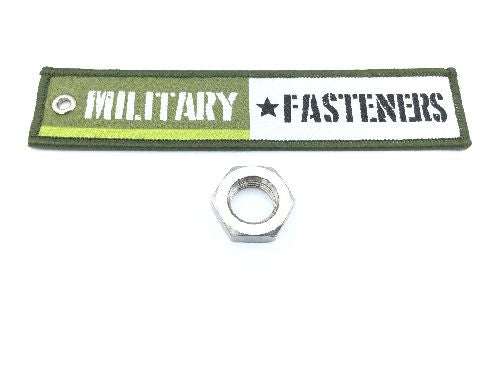

MS9361-15 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Bearing Surface Finish: 63.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees
Nut Height: 0.281 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.865 inches and 0.877 inches
