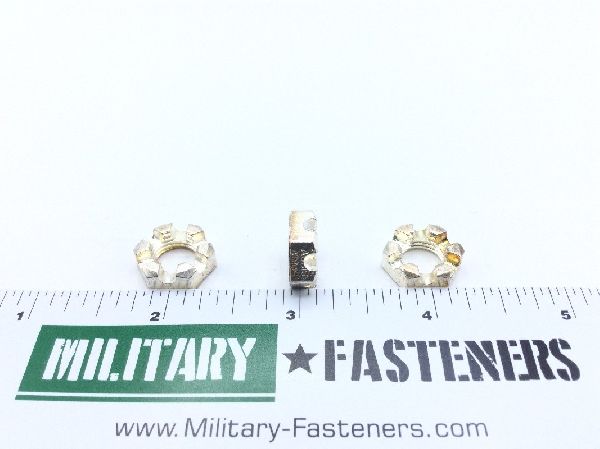

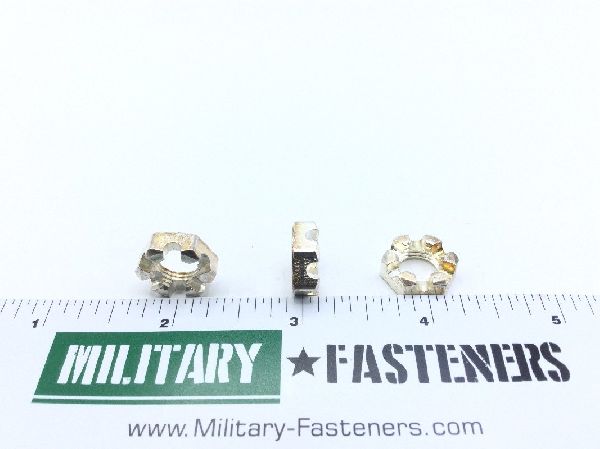

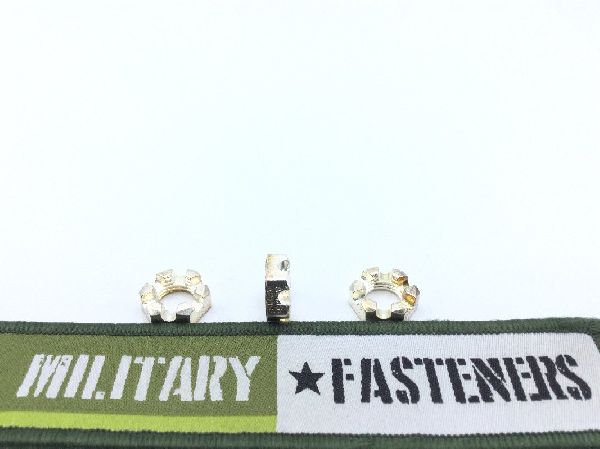

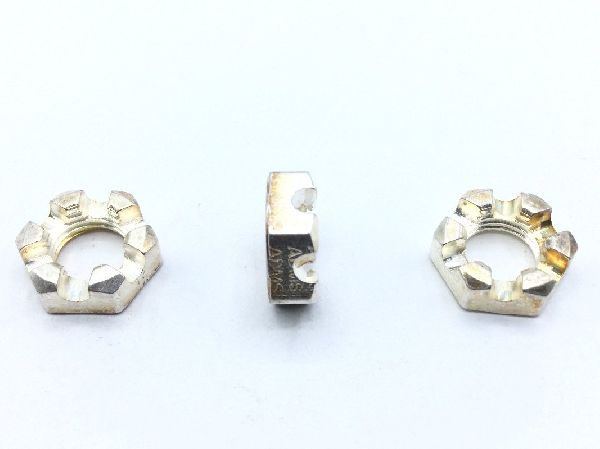

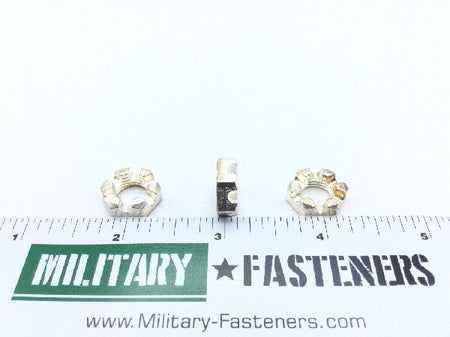

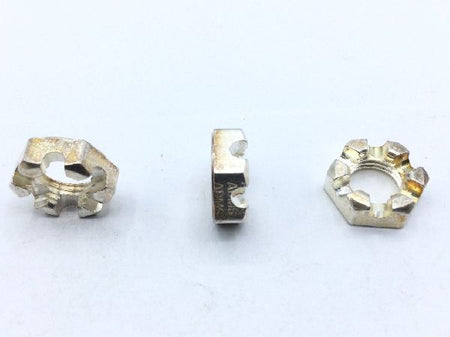

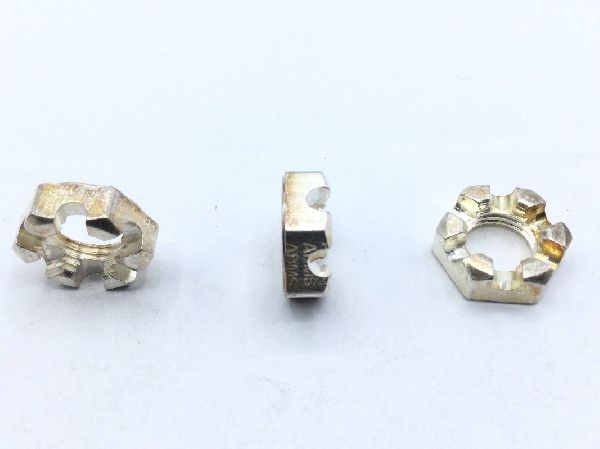

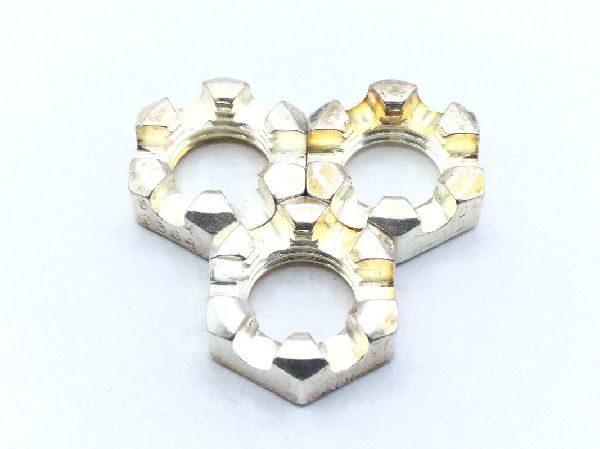

MS9364-12 Plain Slotted Hexagon Nut

MS9364-12 Plain Slotted Hexagon Nut (2)

MS9364-12 Plain Slotted Hexagon Nut (3)

MS9364-12 Plain Slotted Hexagon Nut (4)

MS9364-12 Plain Slotted Hexagon Nut (5)

MS9364-12 Plain Slotted Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9364-12 Plain Slotted Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Finish: 63.0 microinches
Bearing Surface Type: Washer faced
Countersink Angle: 90.0 degrees nut
Material Specification: Ams 5737 assn standard single material response or ams 5732 assn standard single material response
Nut Height: Between 0.209 inches and 0.229 inches
Nut Style: hexagon slotted
Precious Material: Silver
Precious Material And Location: Silver
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
