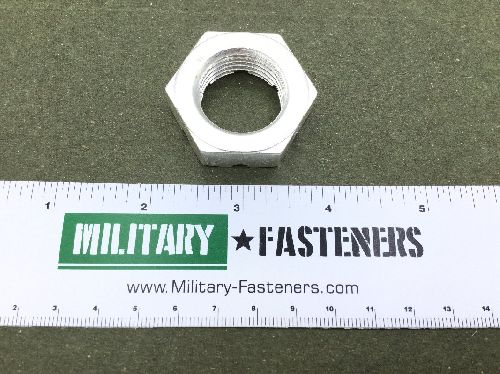

MS9364-19 Plain Slotted Hexagon Nut

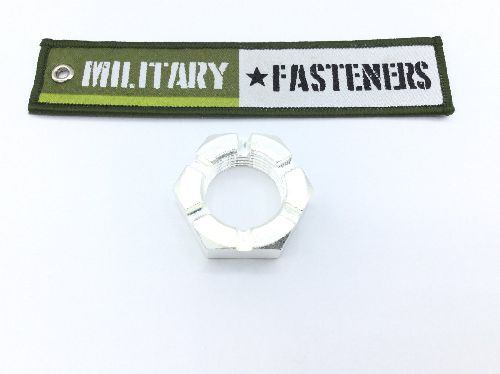

MS9364-19 Plain Slotted Hexagon Nut (2)

MS9364-19 Plain Slotted Hexagon Nut (3)

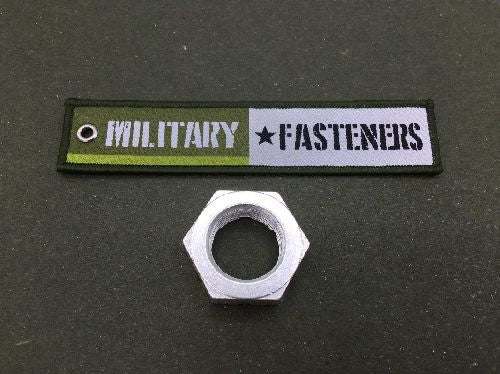

MS9364-19 Plain Slotted Hexagon Nut (4)

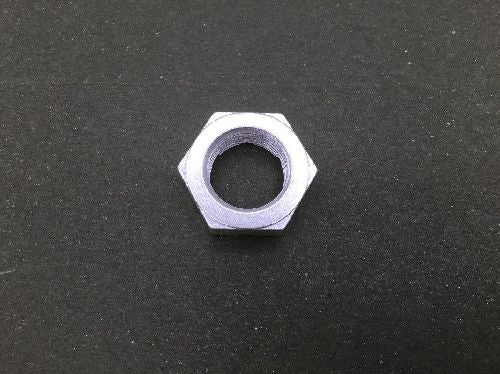

MS9364-19 Plain Slotted Hexagon Nut (5)

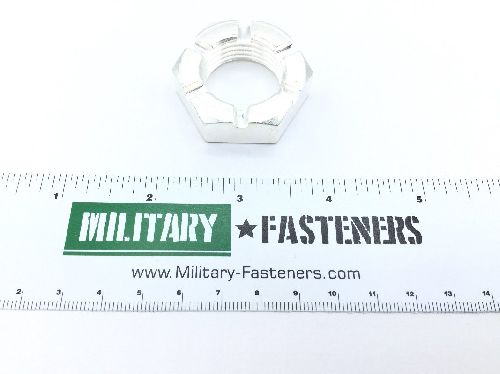

MS9364-19 Plain Slotted Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9364-19 Plain Slotted Hexagon Nut

NSN: 5310-00-943-6567
Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

1.00 inches

Countersink Angle: 85.0 degrees and 95.0 degrees
Material Specification: Ams 5735 assn standard single material response
Nut Height: Between 0.490 inches and 0.510 inches
Nut Style: hexagon slotted
Precious Material: Silver
Surface Finish: 63.0 microinches
Surface Type: Washer faced
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.427 inches and 1.440 inches
