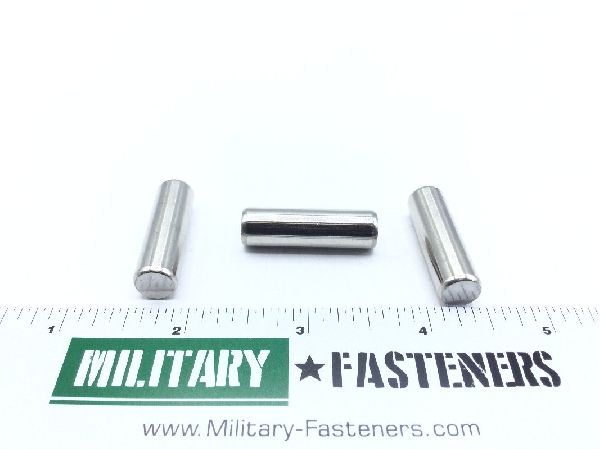

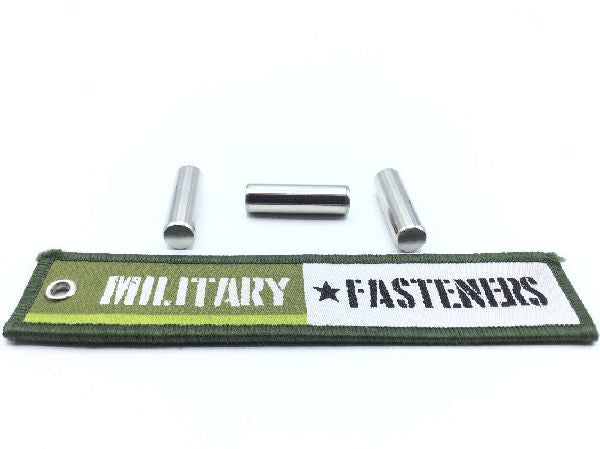

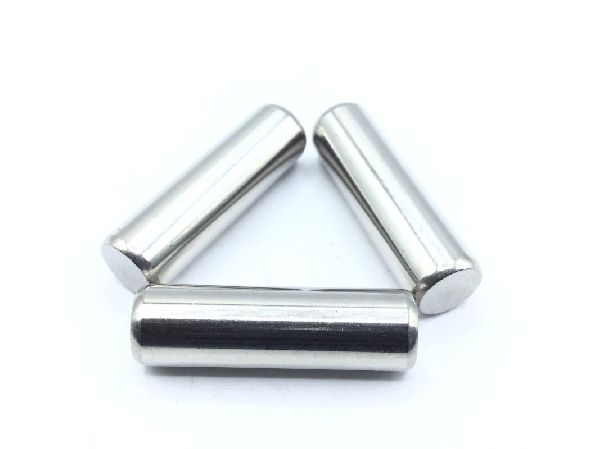

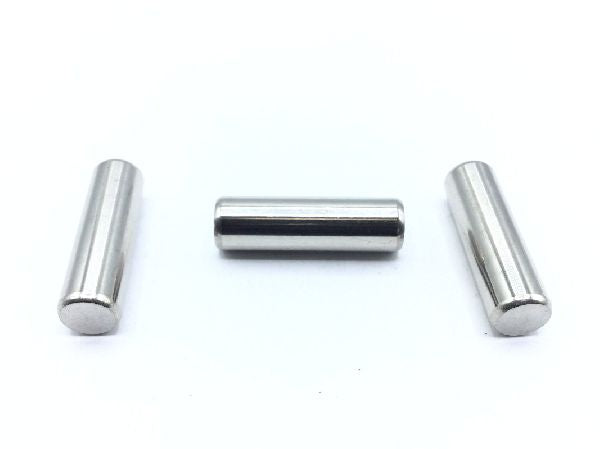

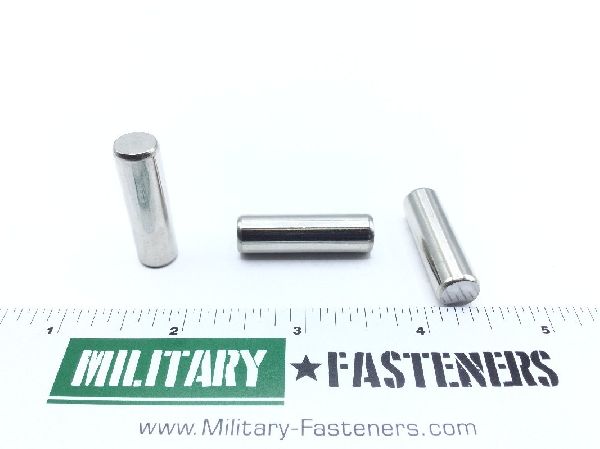

MS9390-720 Straight Headless Pin

MS9390-720 Straight Headless Pin (2)

MS9390-720 Straight Headless Pin (3)

MS9390-720 Straight Headless Pin (4)

MS9390-720 Straight Headless Pin (5)

MS9390-720 Straight Headless Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9390-720 Straight Headless Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $20.72

Units per Pack 5

Price per Pack $103.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $103.60

Add item to quote

Material

Iron alloy 660

First End Corner Radius: Between 0.090 inches and 0.110 inches
First End Style: Radius
Material Specification: Ams 5732 assn standard single material response
Pindiameter: Between 0.37475 inches and 0.37525 inches
Pinlength: Between 1.240 inches and 1.260 inches
Second End Relationship With First End: Identical
Surface Finish: 32.0 microinches outside diameter
