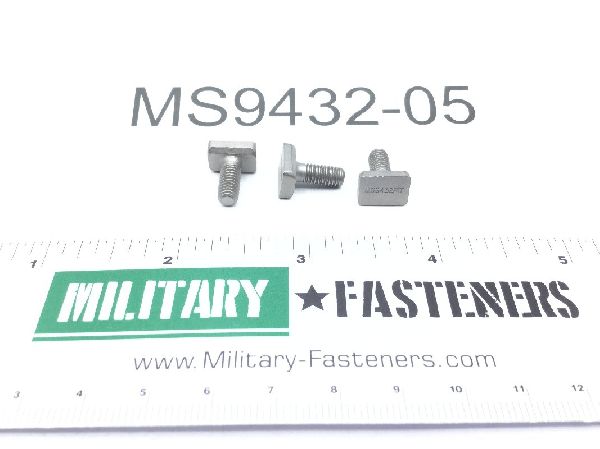

MS9432-05 Tee Head Bolt

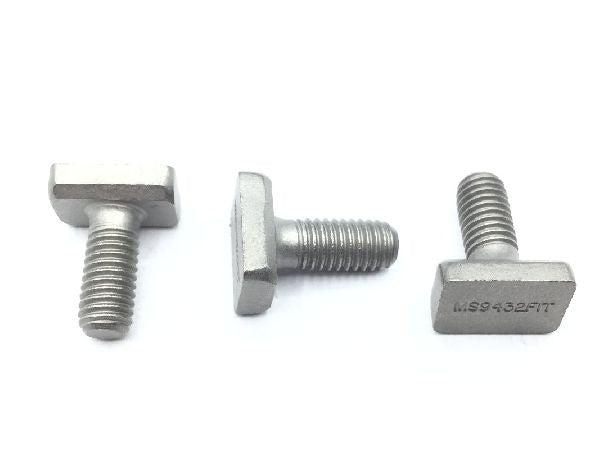

MS9432-05 Tee Head Bolt (2)

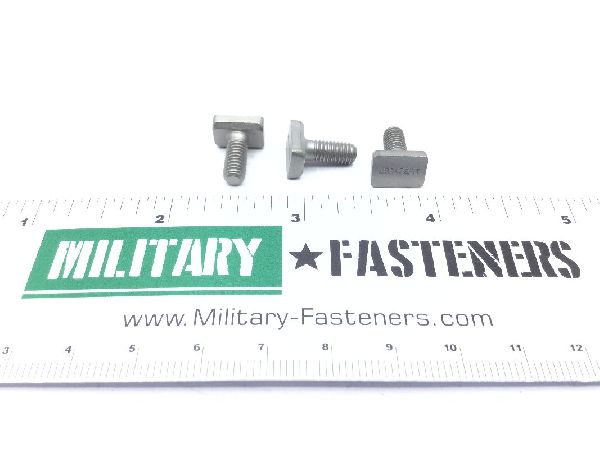

MS9432-05 Tee Head Bolt (3)

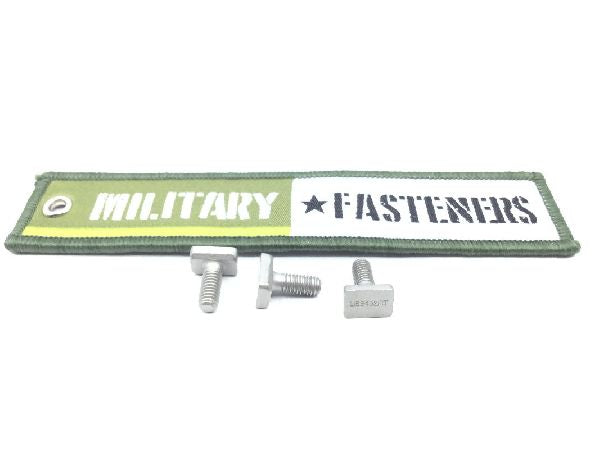

MS9432-05 Tee Head Bolt (4)
MS9432-05 Tee Head Bolt
MS9432-05 Tee Head Bolt (2)
MS9432-05 Tee Head Bolt (3)
MS9432-05 Tee Head Bolt (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9432-05 Tee Head Bolt

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2000
Price per Unit $5.50
Units per Pack 10
Price per Pack $55.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $55.00
Add item to quote
Head Style
Tee no. 6
Material
Iron alloy 660
Thread Class
3a
Chamfer Angle
Between 45.0 degrees and 47.0 degrees
Fastener Length
Between 0.428 inches and 0.448 inches
Head Height
Between 0.115 inches and 0.135 inches
Head Length
Between 0.420 inches and 0.440 inches
Material Specification
Ams 5735 assn standard single material response
Minimum Yield Strength
85000 pounds per square inch
Surface Finish
63.0 microinches grip
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.294 inches and 0.334 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
Between 0.310 inches and 0.320 inches
