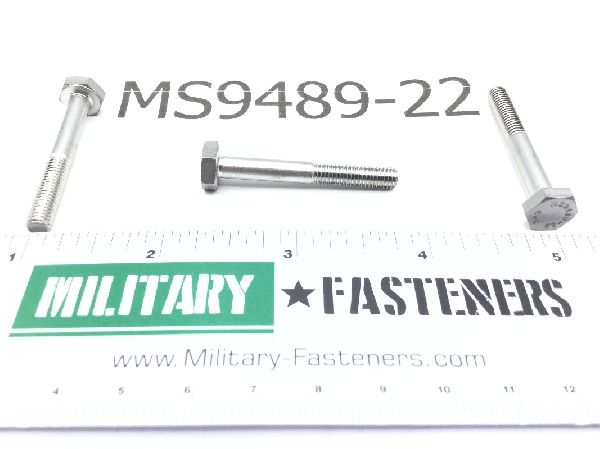

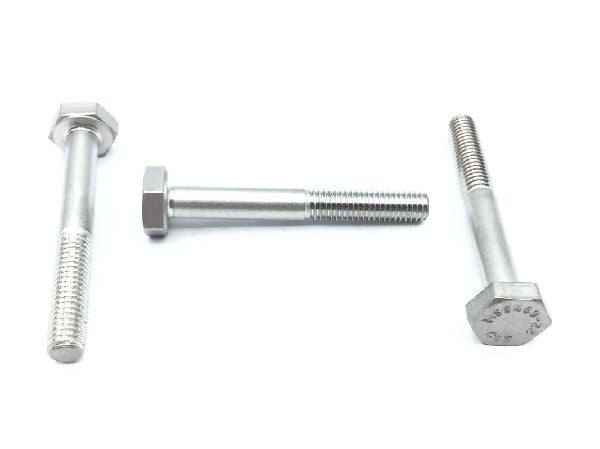

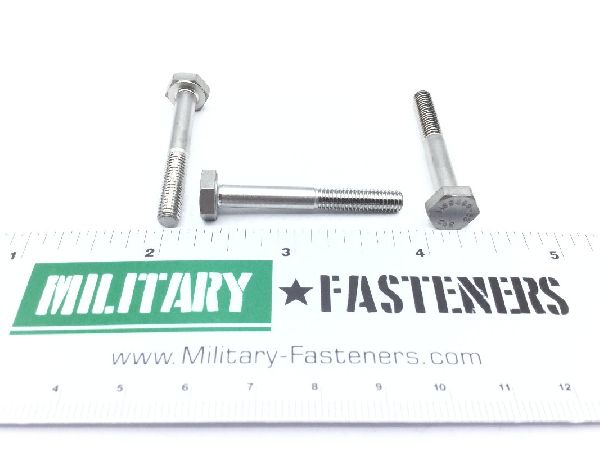

MS9489-22 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: 1.500 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.810 inches and 0.870 inches
Head Height: 0.125 inches
Material Specification: Ams 5731 assn standard single material response
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.630 inches and 0.690 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
