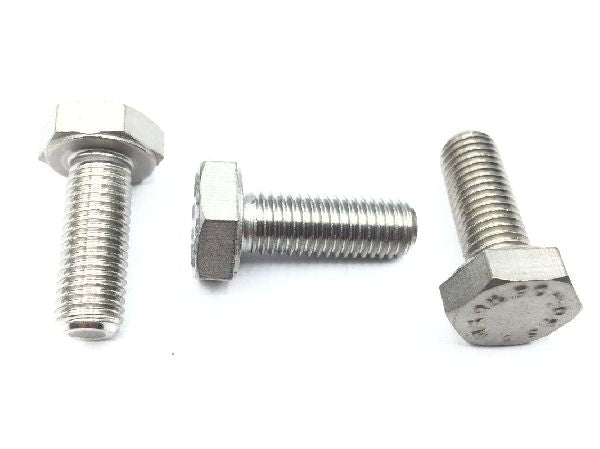

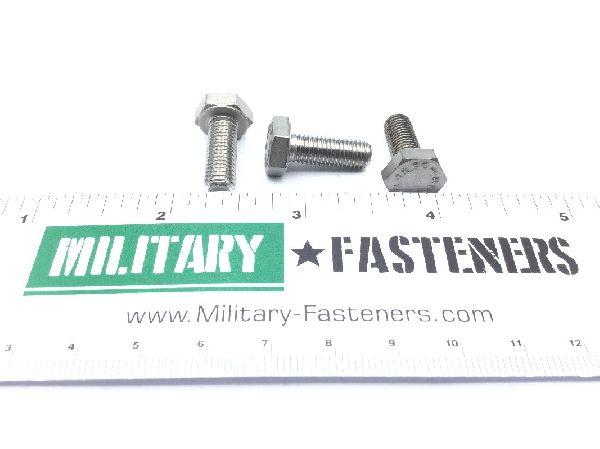

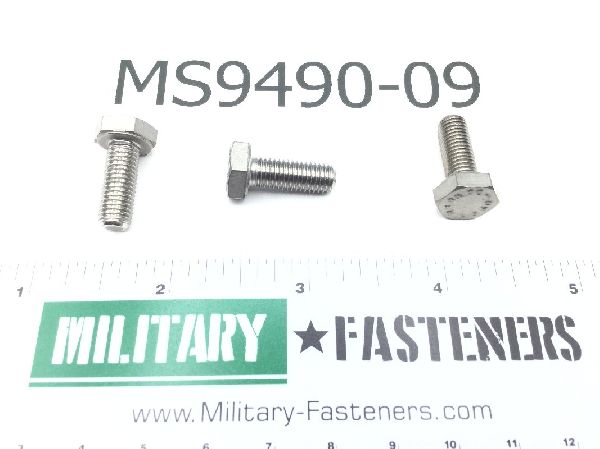

MS9490-09 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: 0.688 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.079 inches and 0.099 inches
Head Height: 0.156 inches
Material Specification: Ams 5731 assn standard single material response
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.589 inches and 0.609 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
