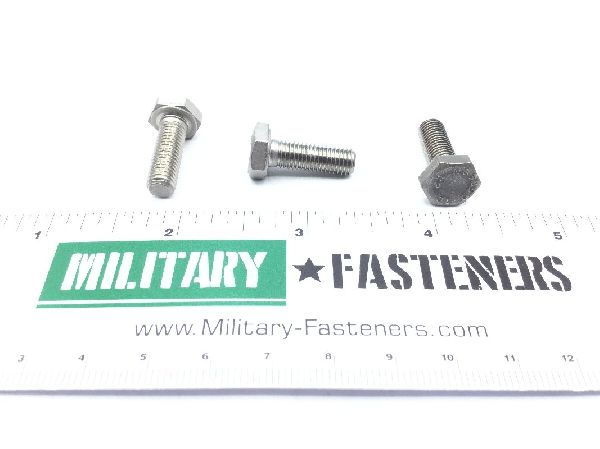

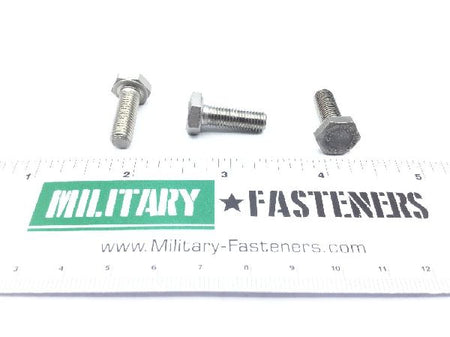

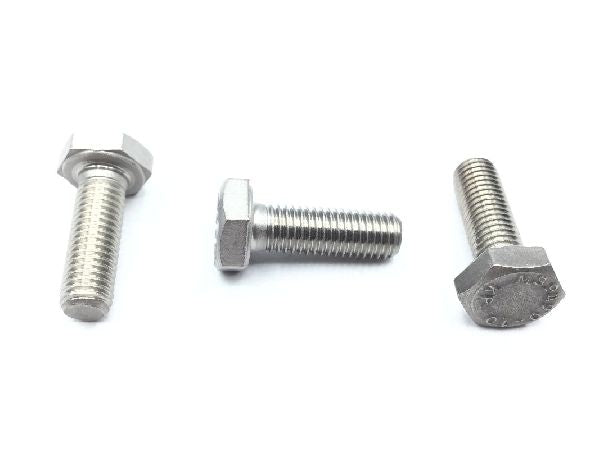

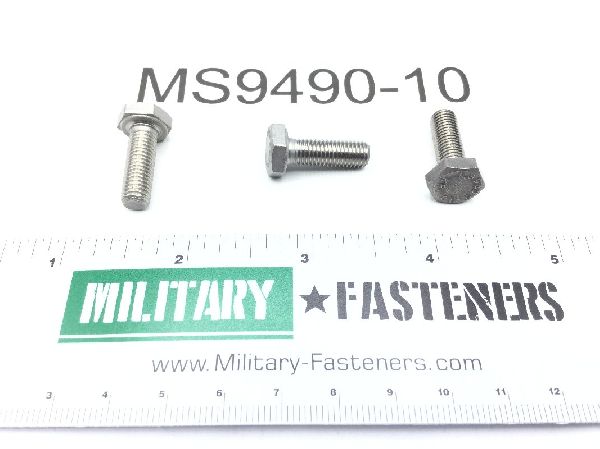

MS9490-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: 0.750 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.079 inches and 0.099 inches
Head Height: 0.156 inches
Material Specification: Ams 5731 assn standard single material response
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.651 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
