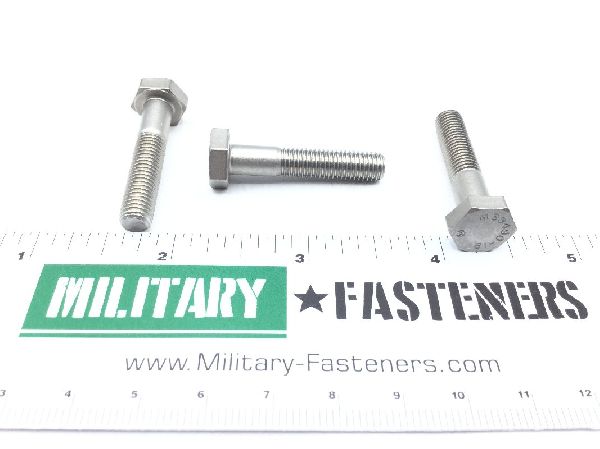

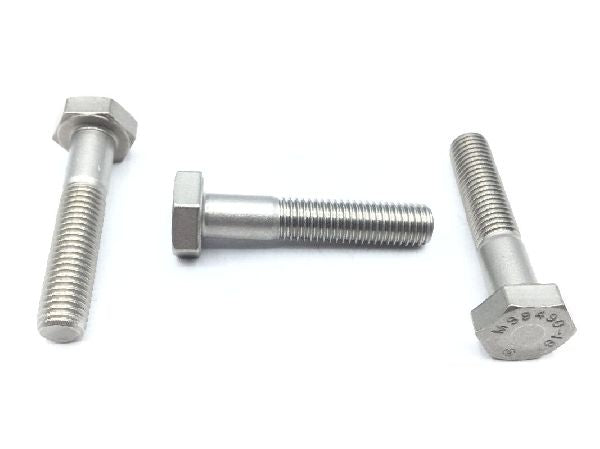

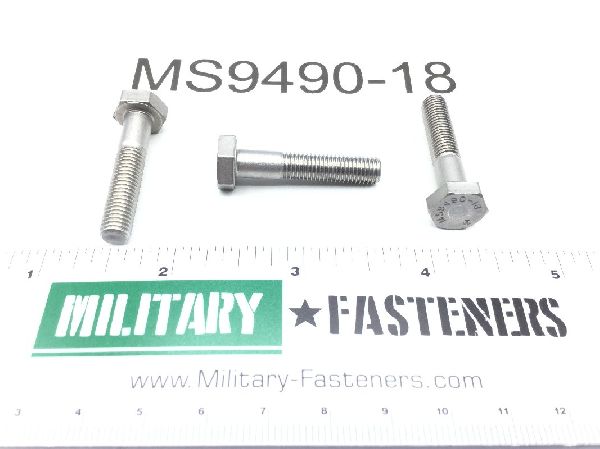

MS9490-18 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $13.30

Units per Pack 5

Price per Pack $66.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $66.50

Add item to quote

Head Style

Hexagon

Material

Iron

Thread Class

Fastener Length: 1.250 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.440 inches and 0.500 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.156 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.810 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
