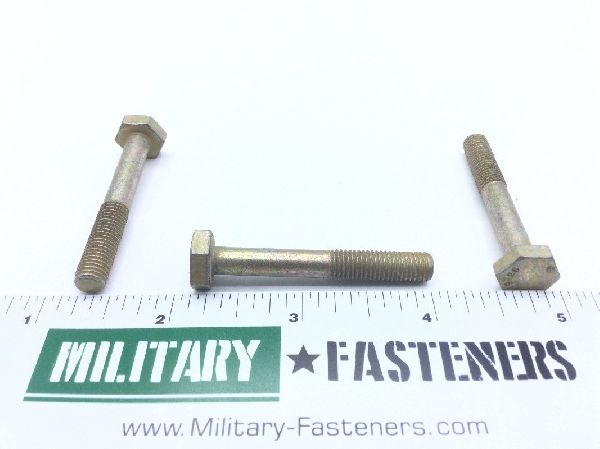

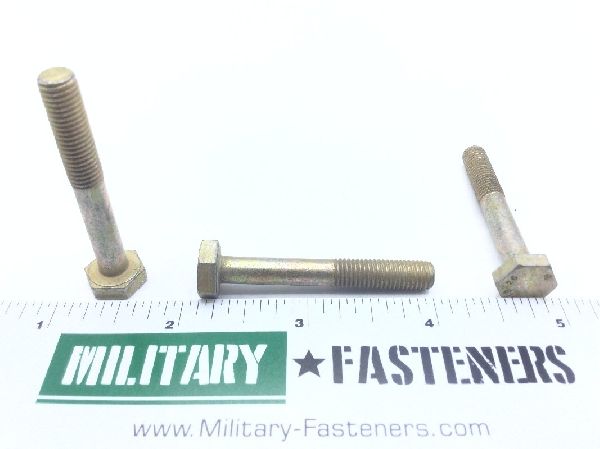

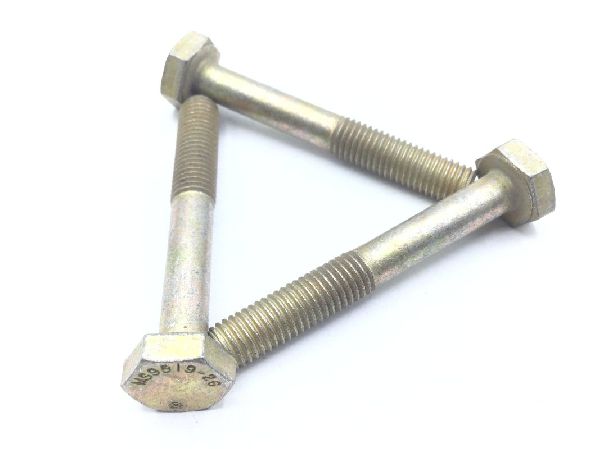

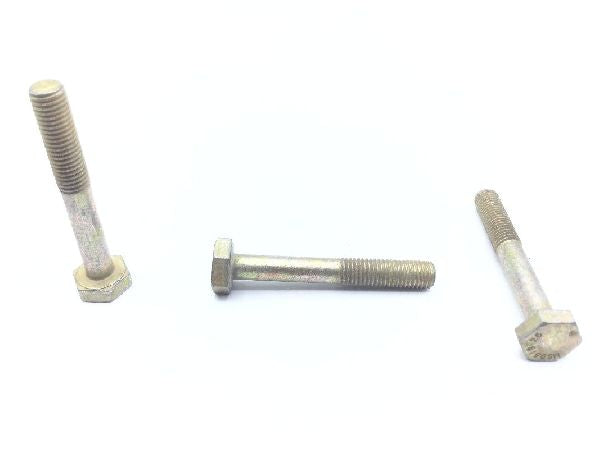

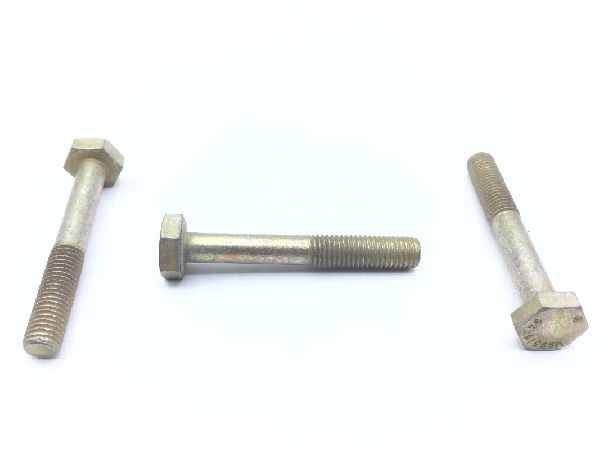

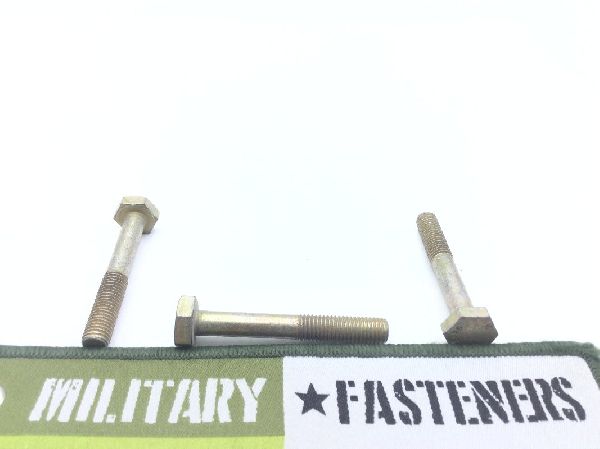

MS9519-26 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Fastener Length: 1.750 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.940 inches and 1.000 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.156 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Length: Between 0.750 inches and 0.810 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
