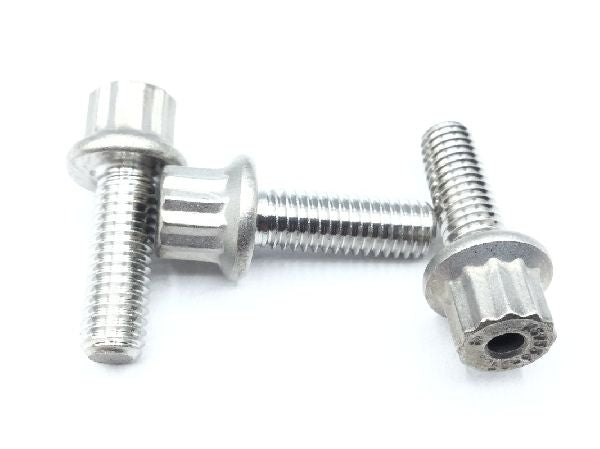

MS9556-07 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.94

Units per Pack 20

Price per Pack $58.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $58.80

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: 0.562 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.072 inches and 0.092 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.260 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.470 inches and 0.490 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.243 inches and 0.251 inches
