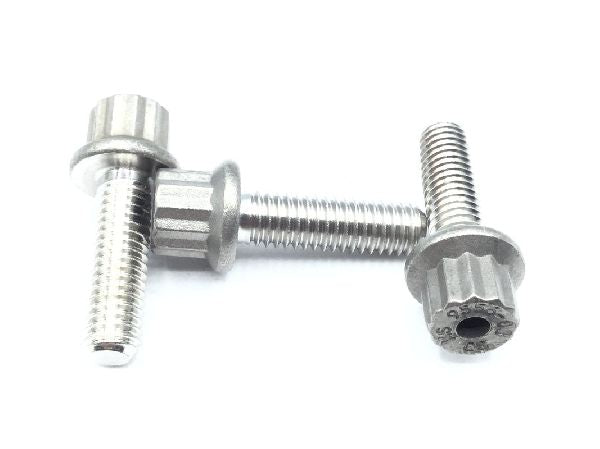

MS9556-08 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: 0.625 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.072 inches and 0.092 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.260 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.533 inches and 0.553 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.243 inches and 0.251 inches
