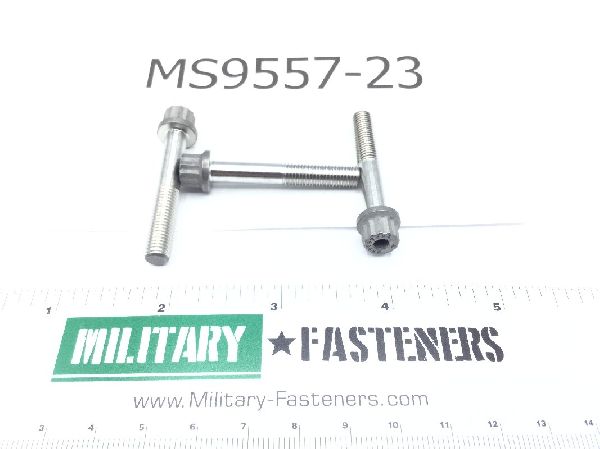

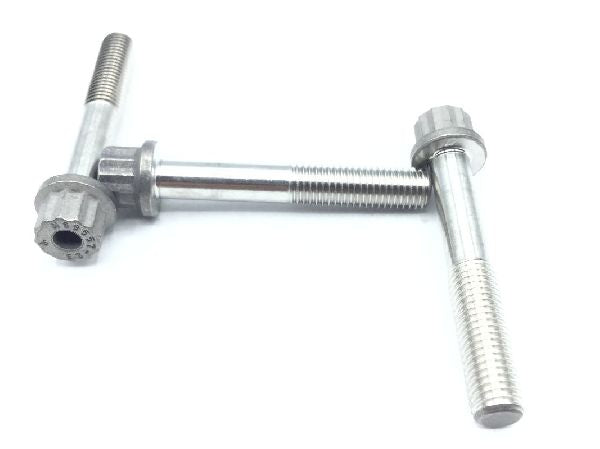

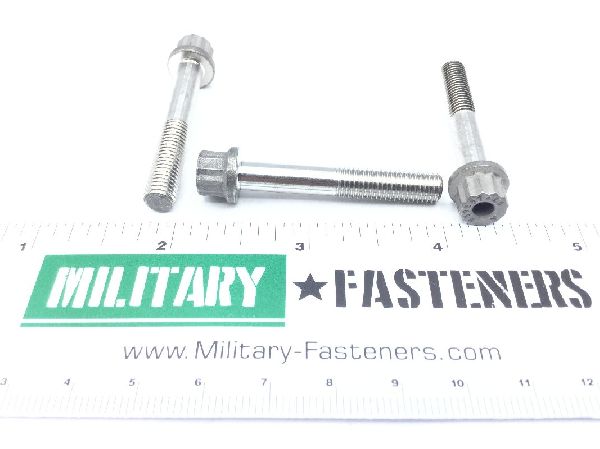

MS9557-23 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $10.39

Units per Pack 5

Price per Pack $51.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.95

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: 1.562 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.812 inches
Head Height: 0.330 inches
Material Specification: Ams 5732 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Specification Data: Ms9557-23 government standard
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.750 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.304 inches and 0.313 inches
