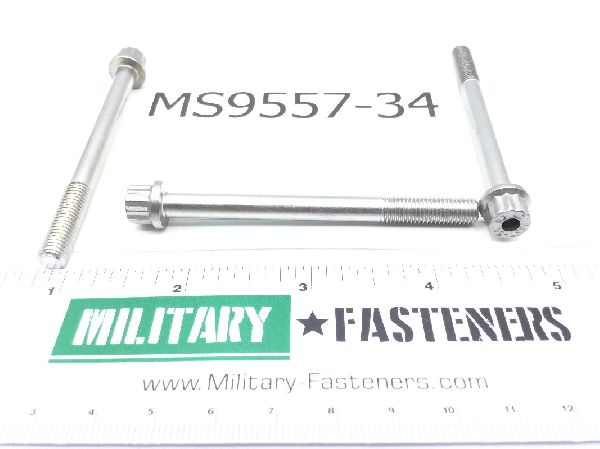

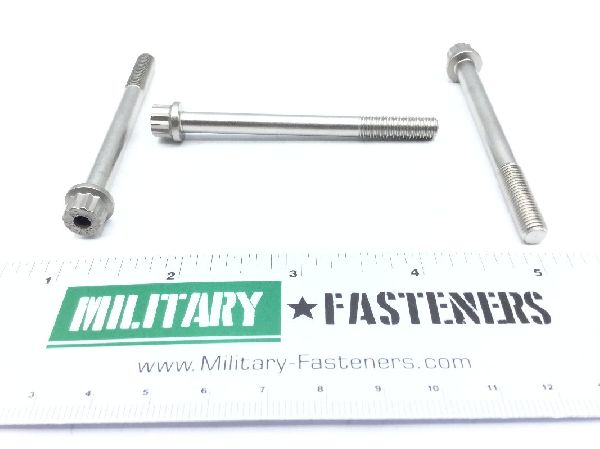

MS9557-34 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $21.48

Units per Pack 5

Price per Pack $107.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $107.40

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: 0.060 inches
Fastener Length: 2.750 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.940 inches and 2.000 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: 0.300 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.810 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.312 inches
