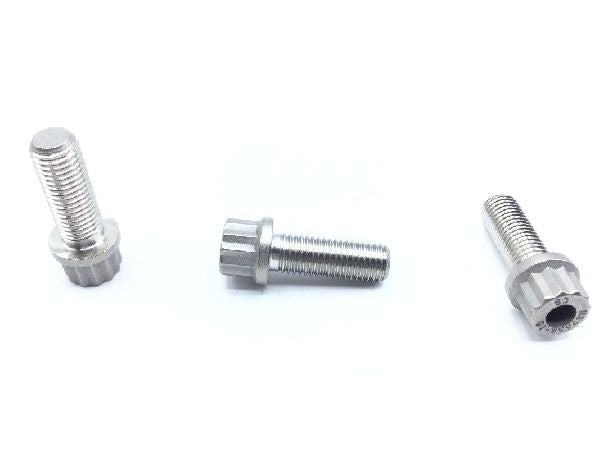

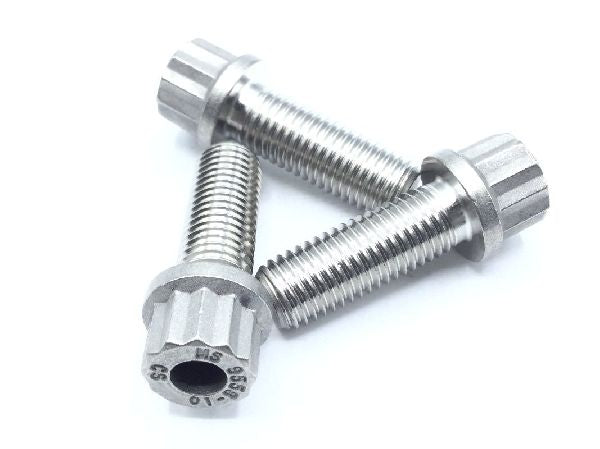

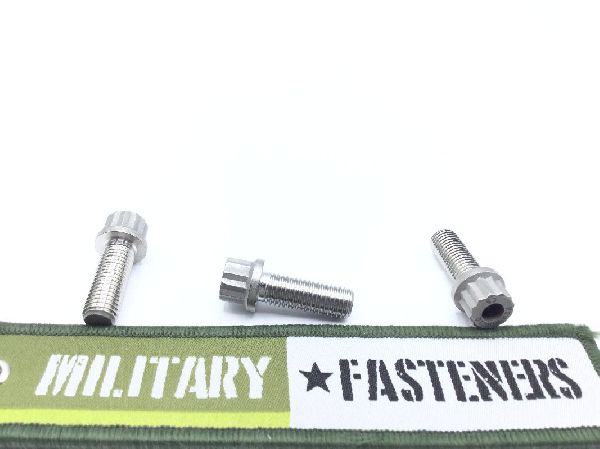

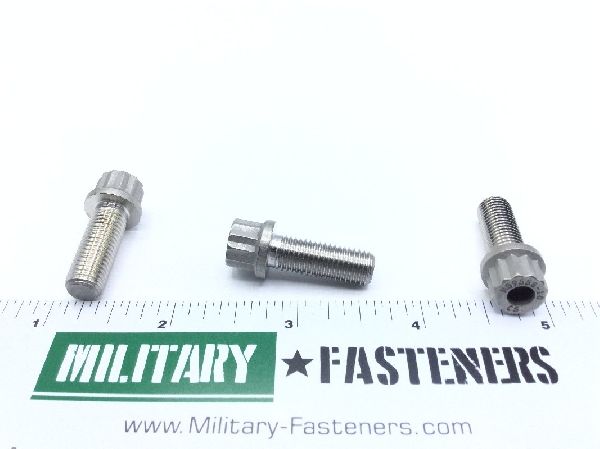

MS9558-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.72

Units per Pack 10

Price per Pack $67.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $67.20

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: 0.070 inches
Fastener Length: 0.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.088 inches and 0.108 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: 0.348 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.767 inches and 0.787 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
