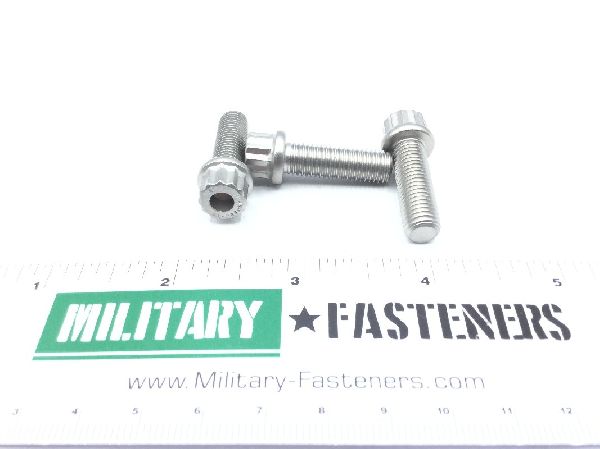

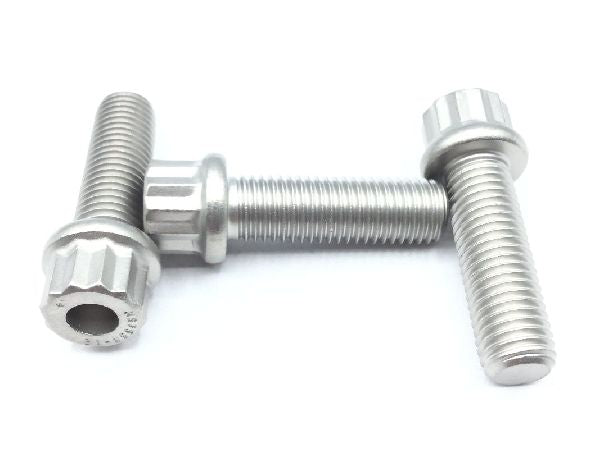

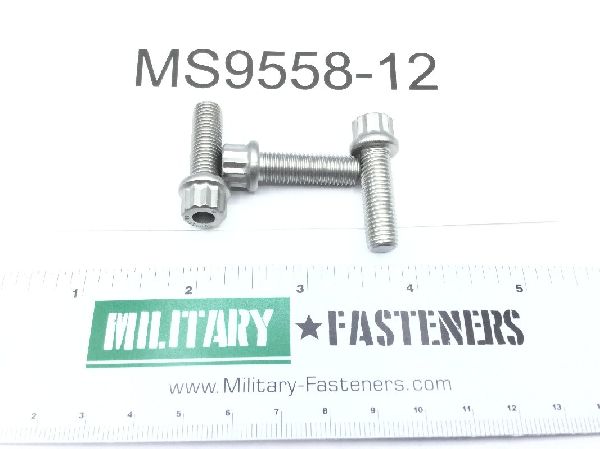

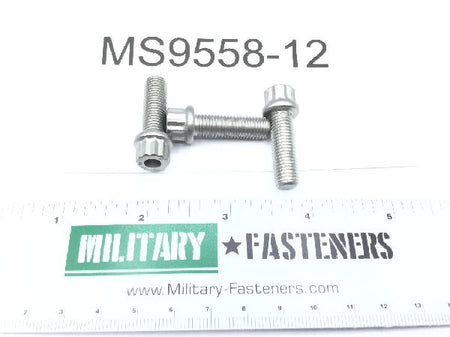

MS9558-12 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $22.87

Units per Pack 5

Price per Pack $114.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $114.35

Add item to quote

Head Style

Double hexagon extended washer

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: Between 0.490 inches and 0.510 inches
Extended Washer Thickness: 0.070 inches
Fastener Length: Between 0.990 inches and 1.010 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.088 inches and 0.125 inches
Head Height: Between 0.338 inches and 0.358 inches
Material Specification: Ams 5731 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.865 inches and 0.922 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.365 inches and 0.385 inches
