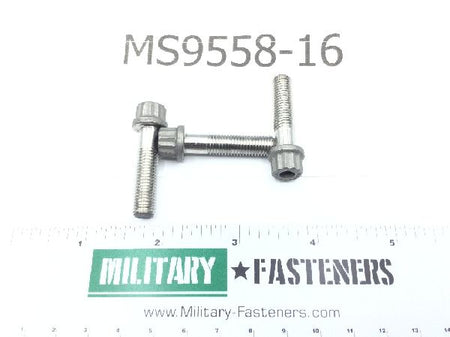

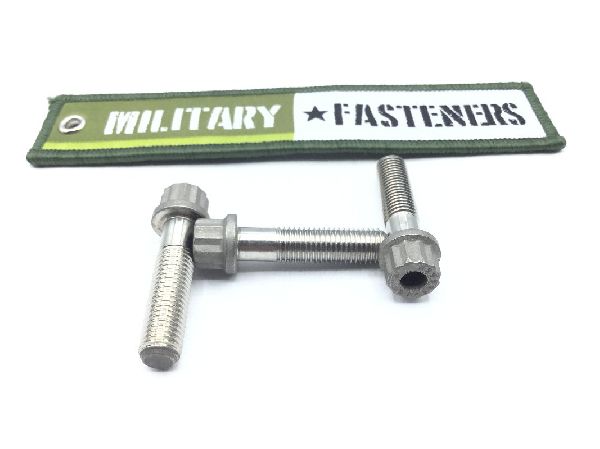

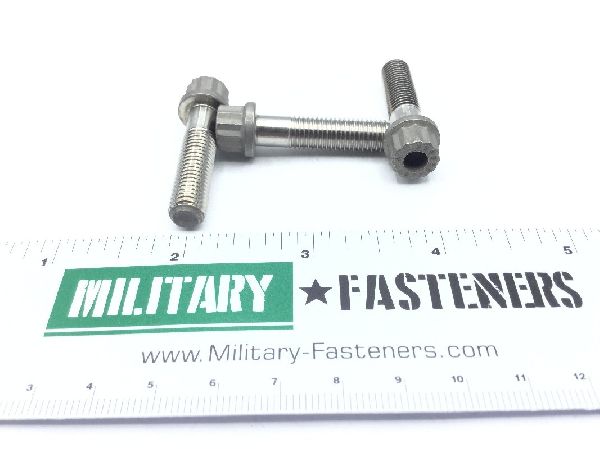

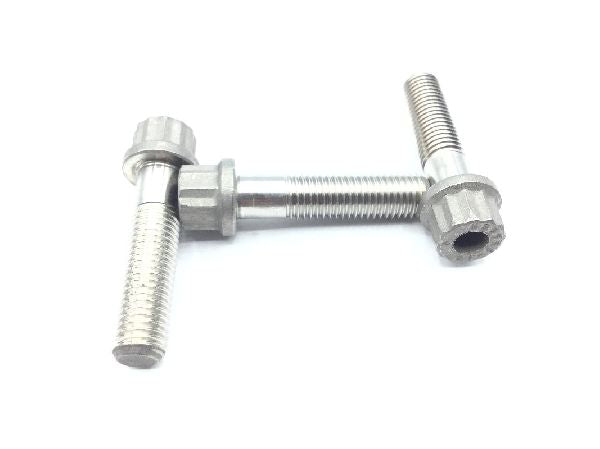

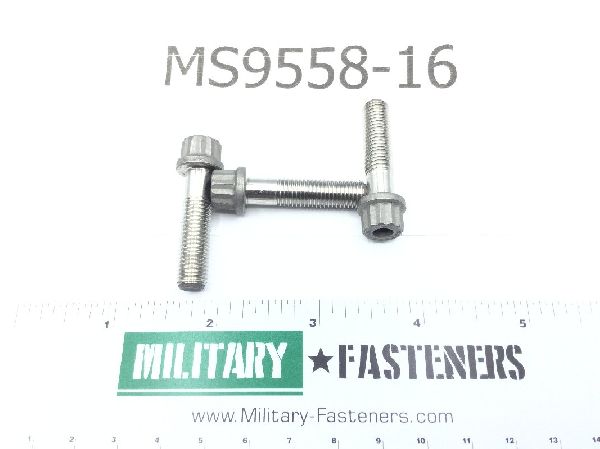

MS9558-16 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $16.98

Units per Pack 5

Price per Pack $84.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $84.90

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

End Application: 1055-01-450-4243
Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: 0.070 inches
Fastener Length: 1.312 inches
Grip Diameter: Between 0.280 inches and 0.290 inches
Grip Length: Between 0.378 inches and 0.438 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: 0.348 inches
Material Specification: Ams 5731-85 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.874 inches and 0.934 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
