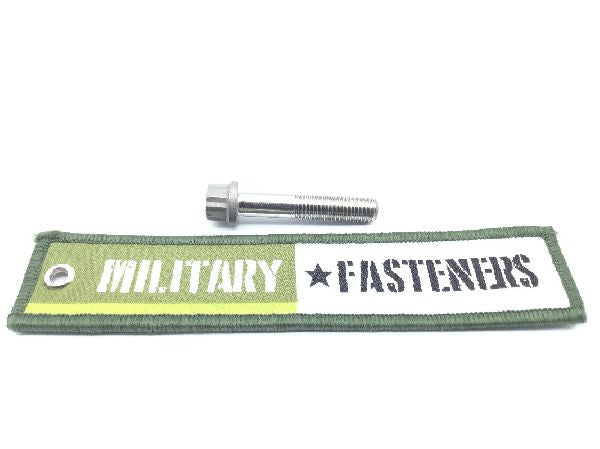

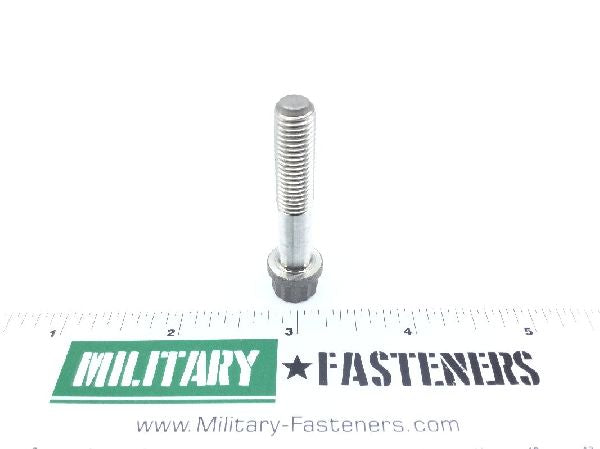

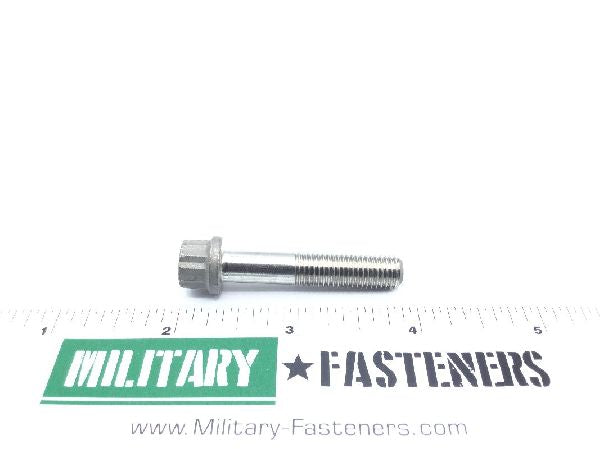

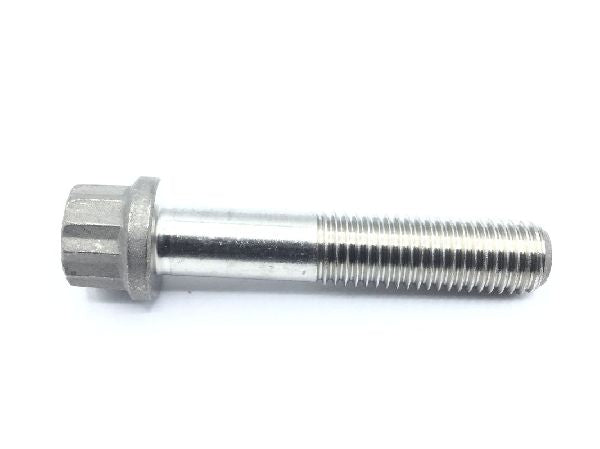

MS9558-21 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $30.42

Units per Pack 1

Price per Pack $30.42

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $30.42

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 1/2 inch
Extended Washer Thickness: 0.07 inches
Fastener Length: 1-1/2 inch
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.628 inches and 0.688 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: 0.348 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 7/8 inch
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
