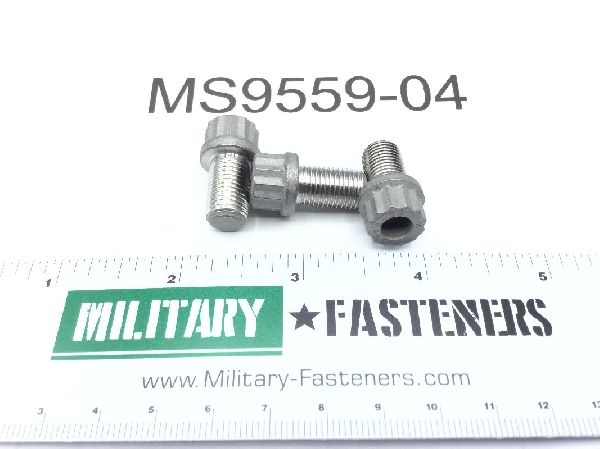

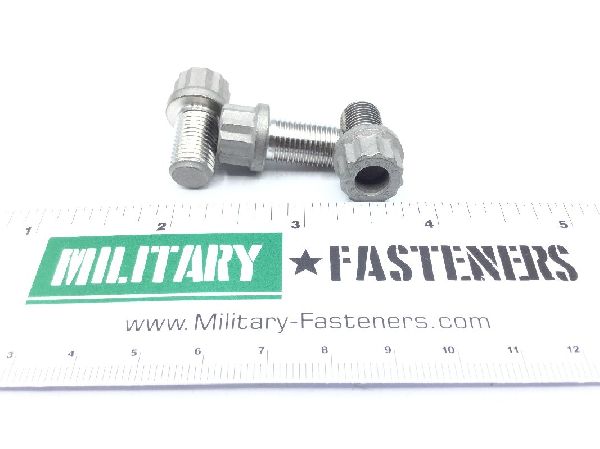

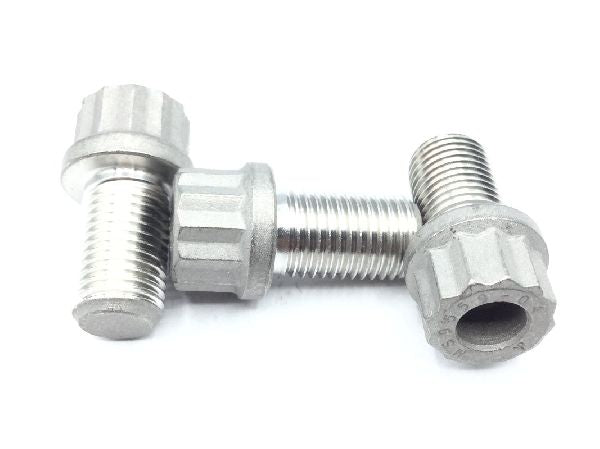

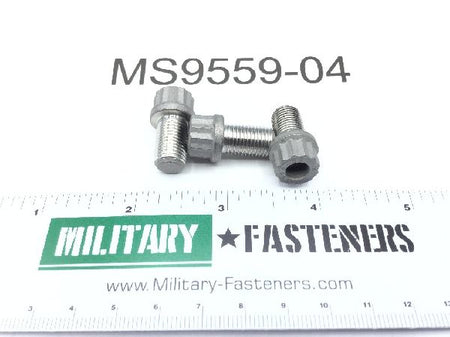

MS9559-04 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $31.19

Units per Pack 2

Price per Pack $62.38

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $62.38

Add item to quote

Head Style

Double hexagon extended washer

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.562 inches
Extended Washer Thickness: 0.090 inches
Fastener Length: 0.625 inches
Grip Diameter: Between 0.343 inches and 0.353 inches
Grip Length: Between 0.088 inches and 0.108 inches
Head Height: 0.388 inches
Material Specification: Ams5731 assn standard single material response
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.517 inches and 0.537 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.491 inches
