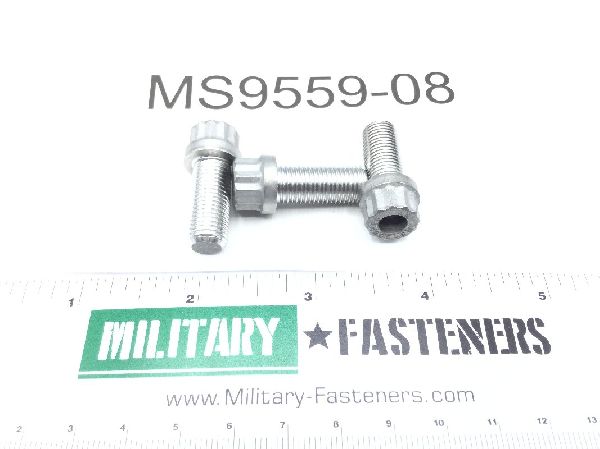

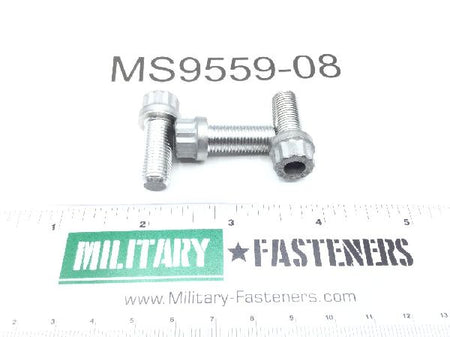

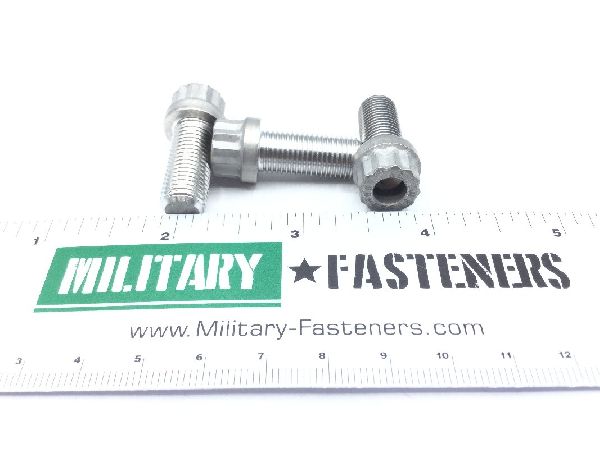

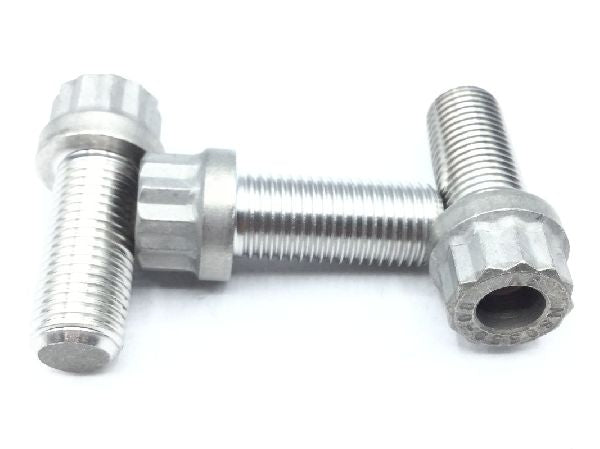

MS9559-08 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.562 inches
Extended Washer Thickness: 0.090 inches
Fastener Length: 0.875 inches
Grip Length: Between 0.088 inches and 0.108 inches
Head Height: 0.388 inches
Material Specification: Ams 5731 assn standard single material response
Specification Data: 96906-ms9559 government standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.777 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.437 inches
