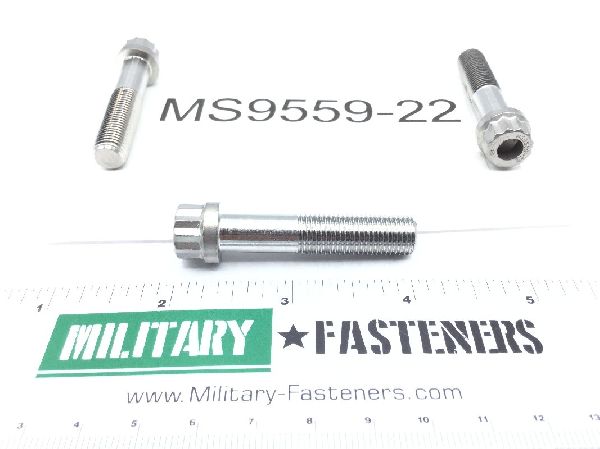

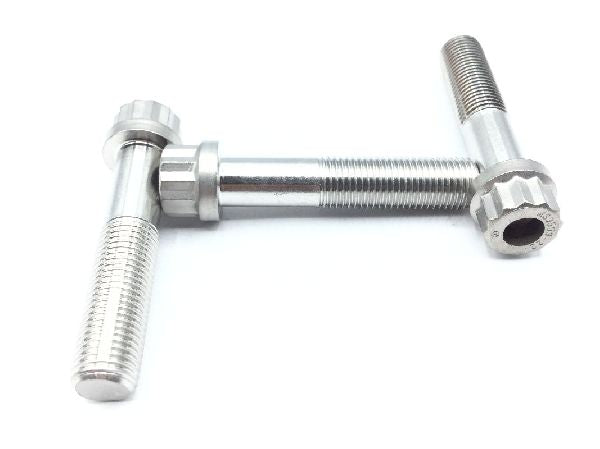

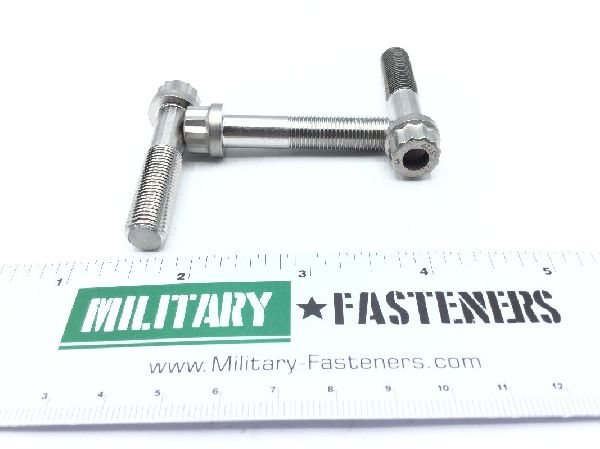

MS9559-22 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $25.99

Units per Pack 5

Price per Pack $129.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $129.95

Add item to quote

Head Style

Double hexagon

Material

Iron alloy 660

Thread Class

3a

Extended Washer Diameter: 0.562 inches
Extended Washer Thickness: 0.090 inches
Fastener Length: 1.750 inches
Head Height: 0.388 inches
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.437 inches
