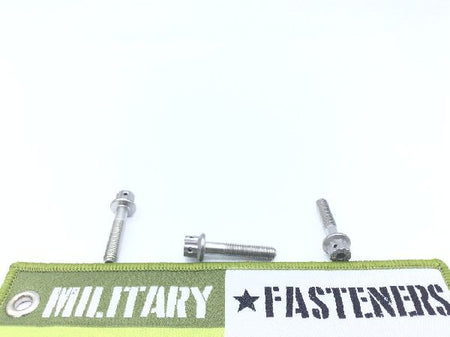

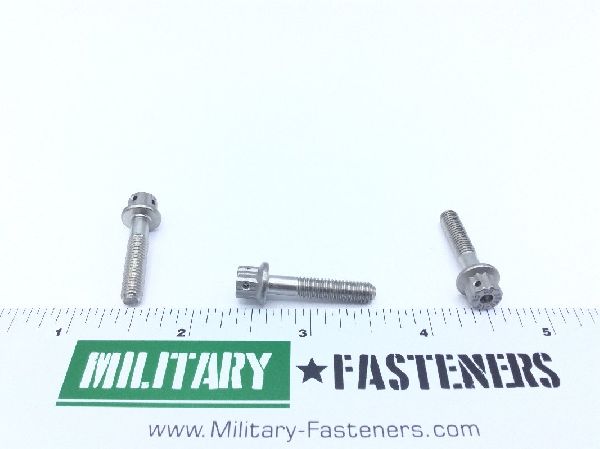

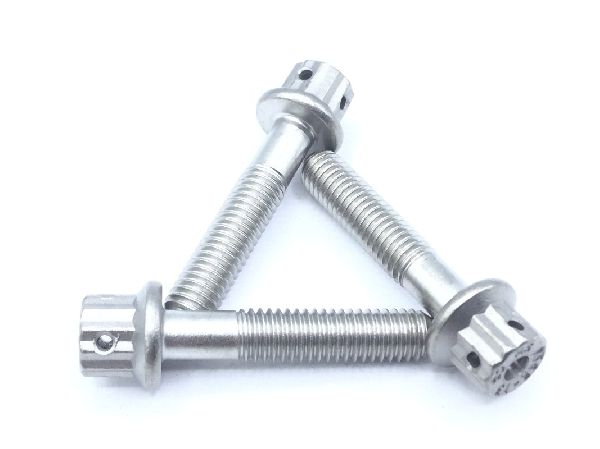

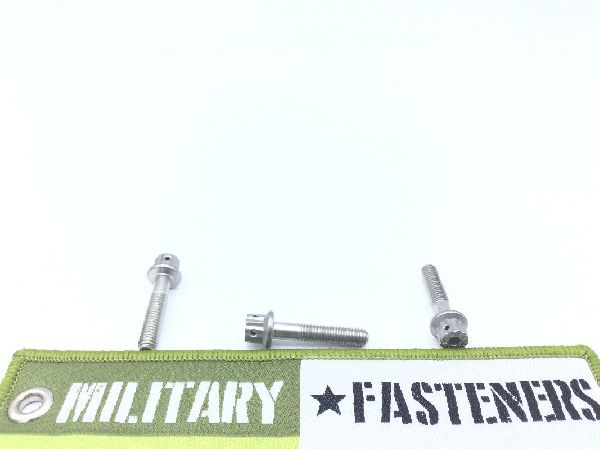

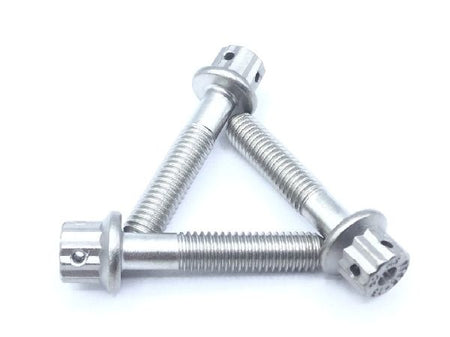

MS9565-13 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.70

Units per Pack 10

Price per Pack $97.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $97.00

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: 0.040 inches
Fastener Length: 0.938 inches
Grip Length: Between 0.248 inches and 0.308 inches
Head Height: 0.260 inches
Material Specification: Ams5731 assn standard single material response
Specification Data: 96906-ms9565 government standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.660 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.250 inches
