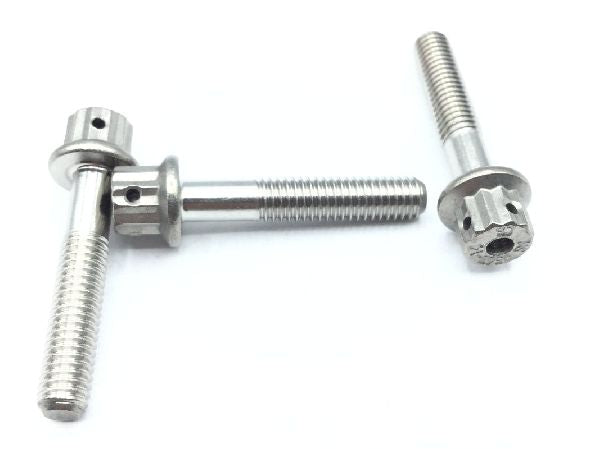

MS9565-14 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: 0.040 inches
Fastener Length: Between 0.990 inches and 1.010 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.310 inches and 0.370 inches
Head Height: 0.220 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.620 inches and 0.700 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.250 inches
Hole Diameter: 0.047 inches
