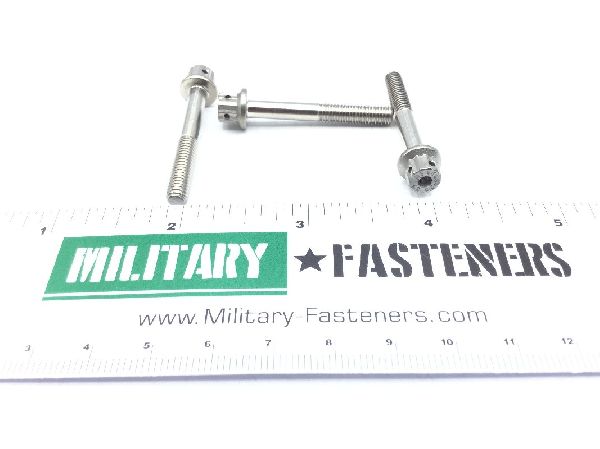

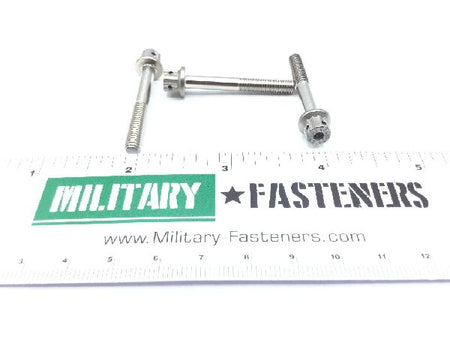

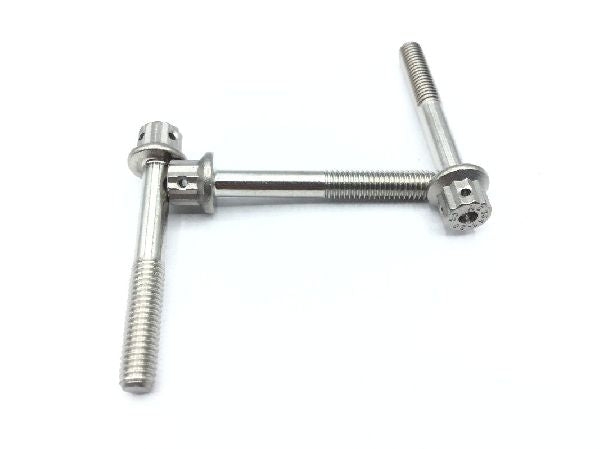

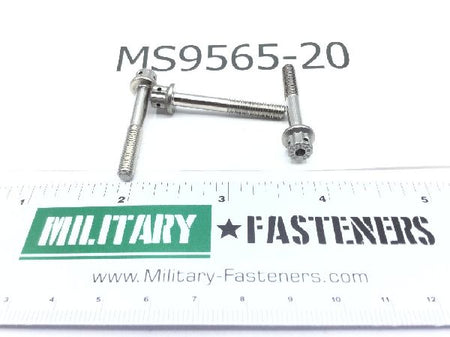

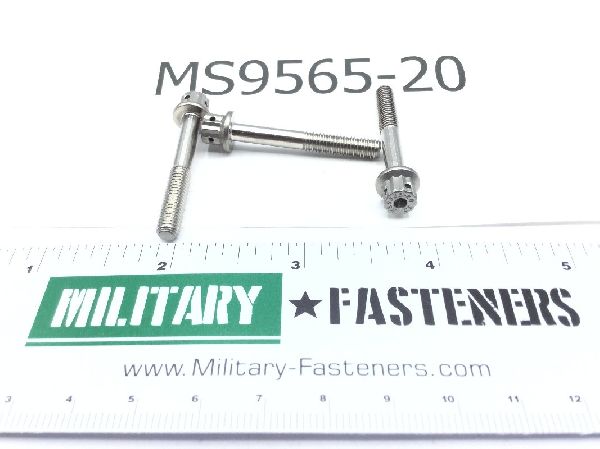

MS9565-20 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: Between 0.365 inches and 0.385 inches
Extended Washer Thickness: 0.040 inches
Fastener Length: Between 1.365 inches and 1.385 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.685 inches and 0.745 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: Between 0.250 inches and 0.270 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.620 inches and 0.700 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.240 inches and 0.260 inches
