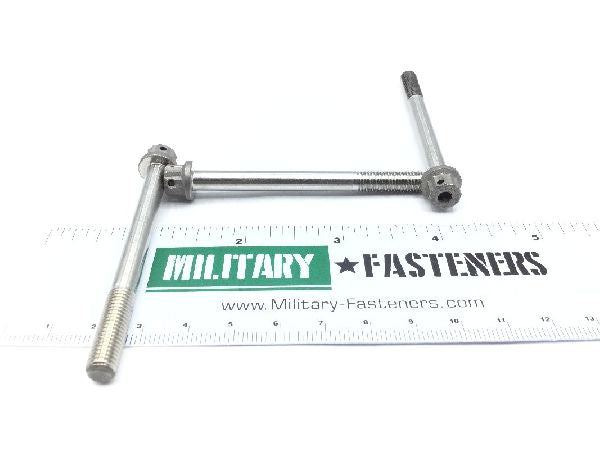

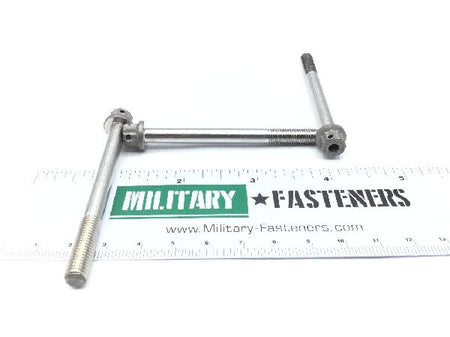

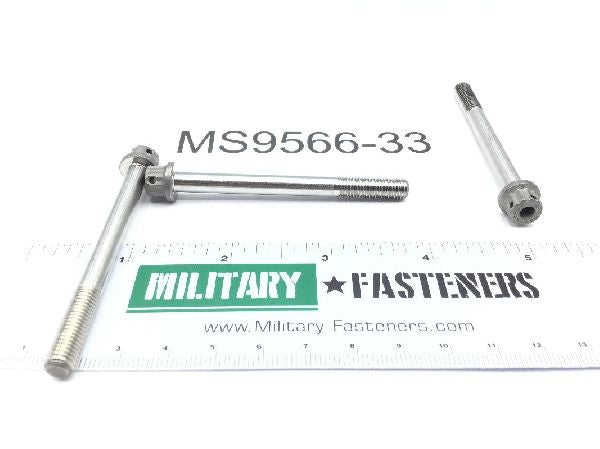

MS9566-33 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $19.06

Units per Pack 5

Price per Pack $95.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $95.30

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.448 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: Between 2.615 inches and 2.635 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.815 inches and 1.875 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Head Height: Between 0.290 inches and 0.310 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 80000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.740 inches and 0.820 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.302 inches and 0.322 inches
Hole Diameter: Between 0.060 inches and 0.080 inches
