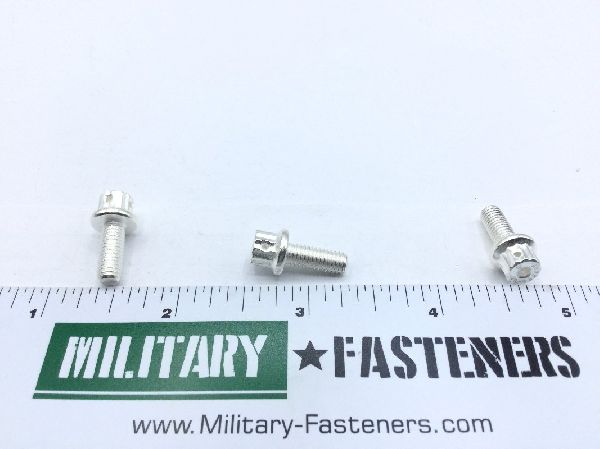

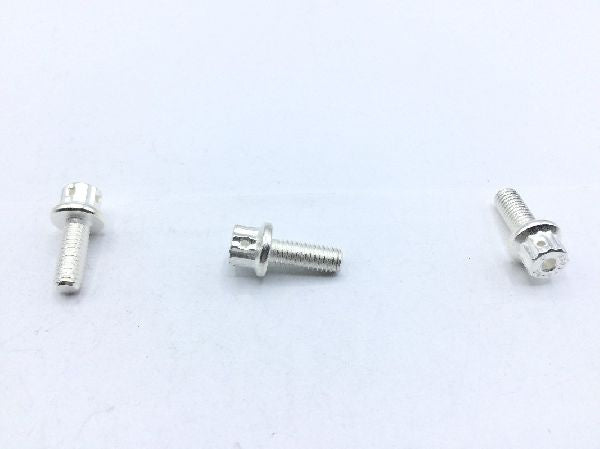

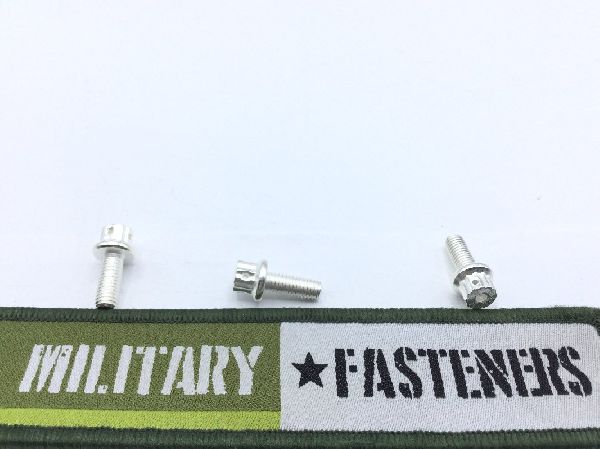

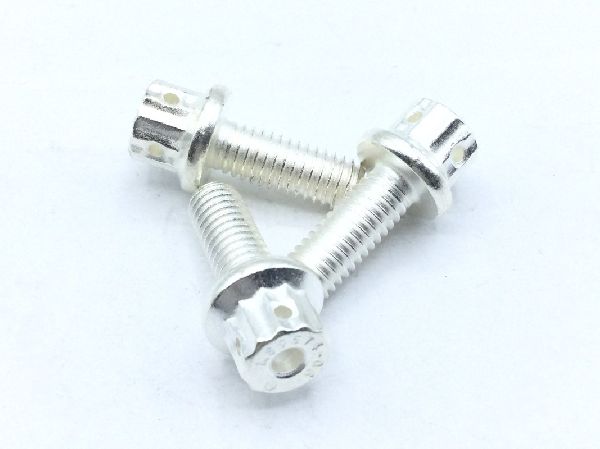

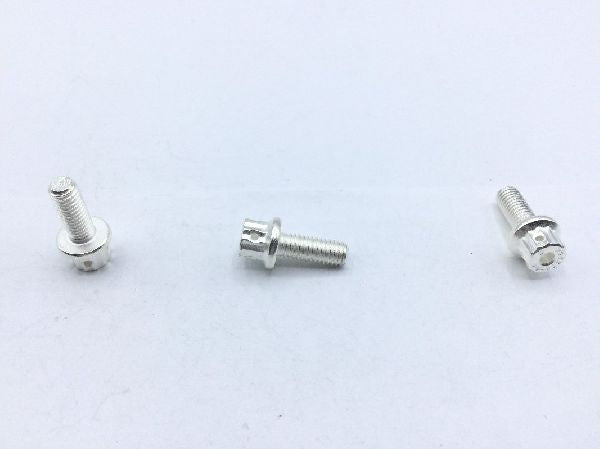

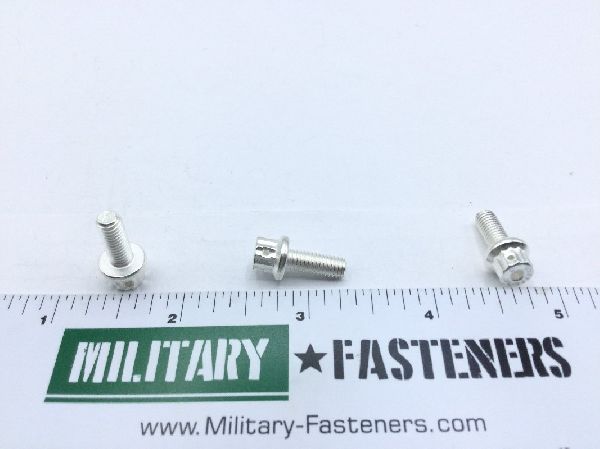

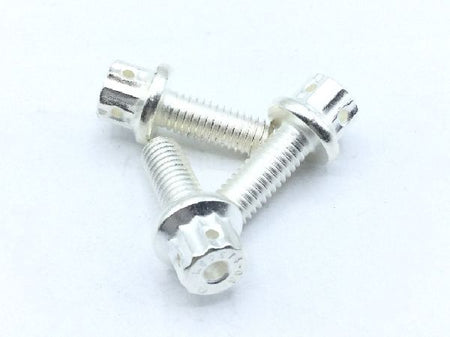

MS9574-06 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.58

Units per Pack 10

Price per Pack $65.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.80

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.365 inches and 0.385 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: Between 0.490 inches and 0.510 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.072 inches and 0.092 inches
Head Height: Between 0.250 inches and 0.270 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 8
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response
Precious Material: Silver
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.398 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.243 inches and 0.251 inches
Hole Diameter: 0.047 inches
