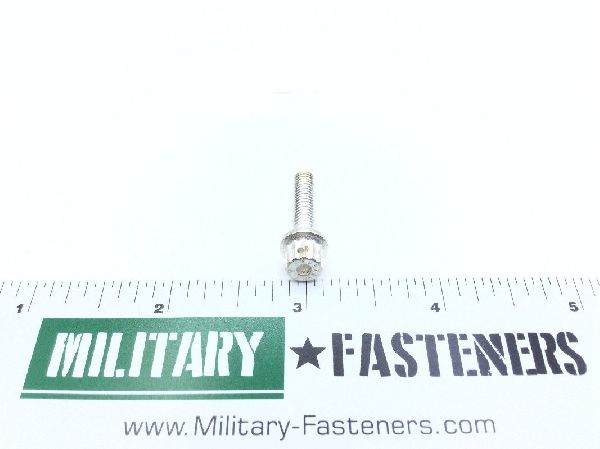

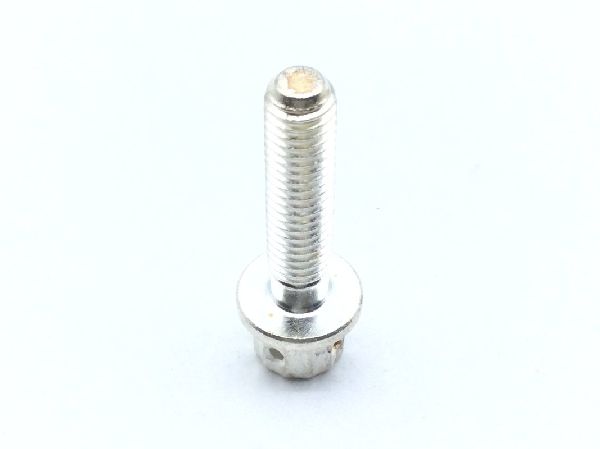

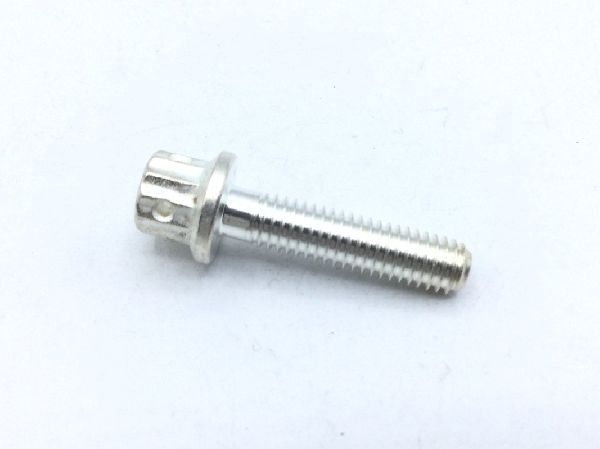

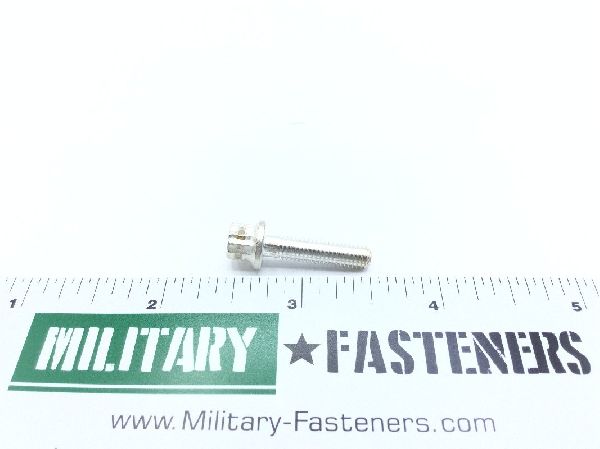

MS9574-11 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $42.00

Units per Pack 2

Price per Pack $84.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $84.00

Add item to quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Surface Treatment

Ams 2411 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: 0.040 inches
Fastener Length: 0.812 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.122 inches and 0.182 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.260 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Precious Material: Silver
Precious Material And Location: Silver
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.630 inches and 0.690 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.250 inches
Hole Diameter: 0.047 inches
