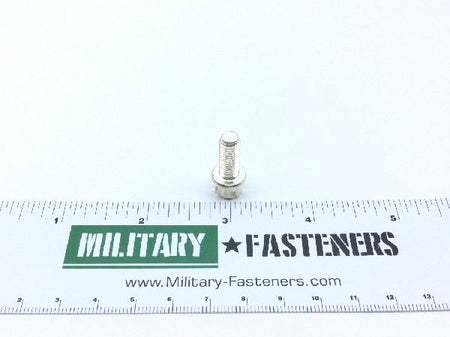

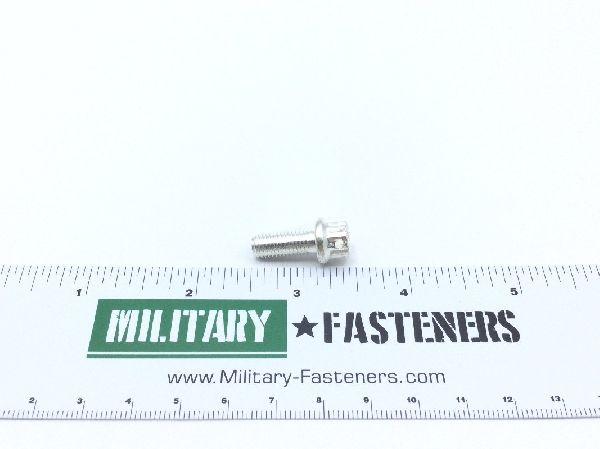

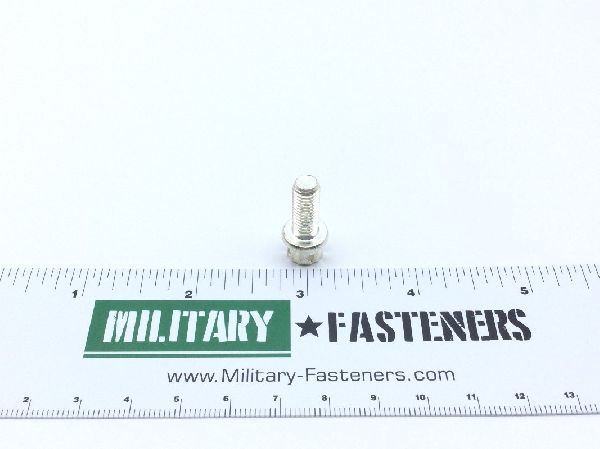

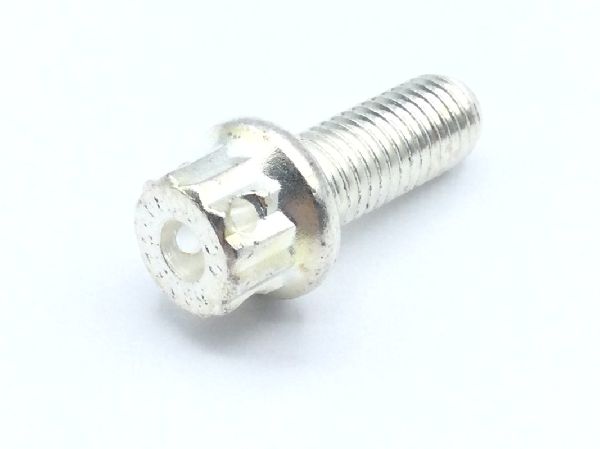

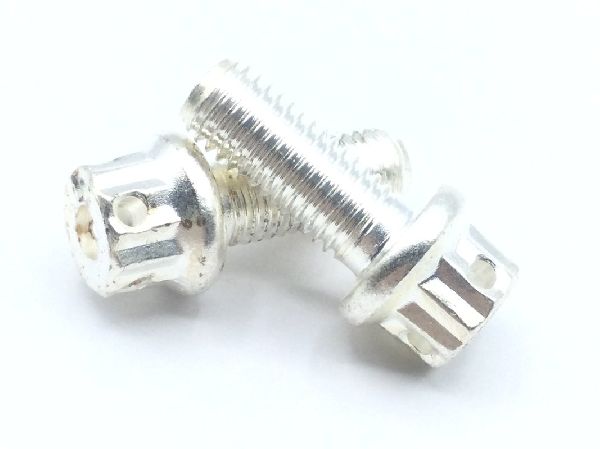

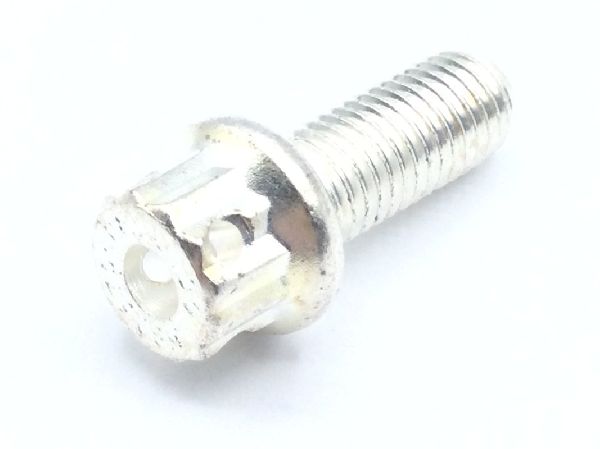

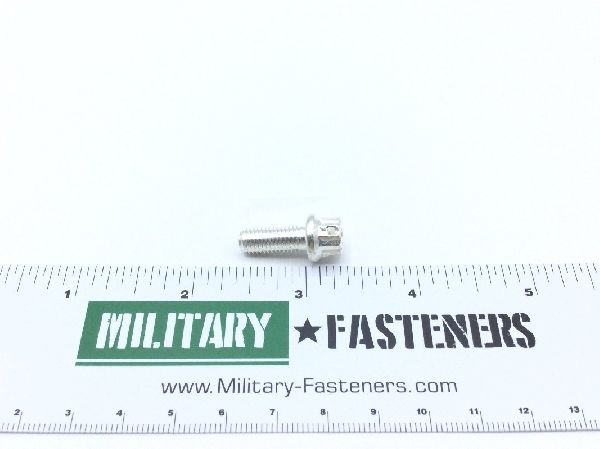

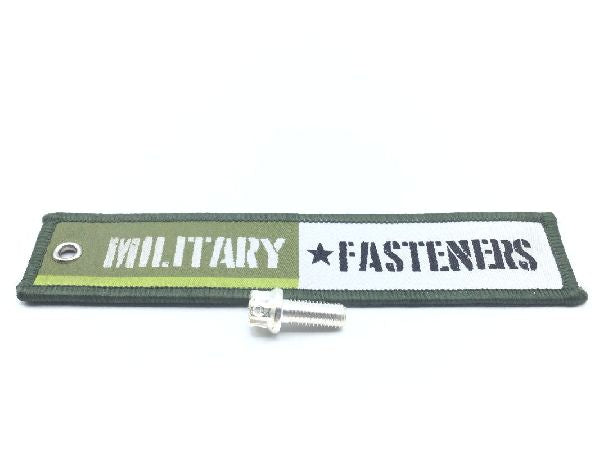

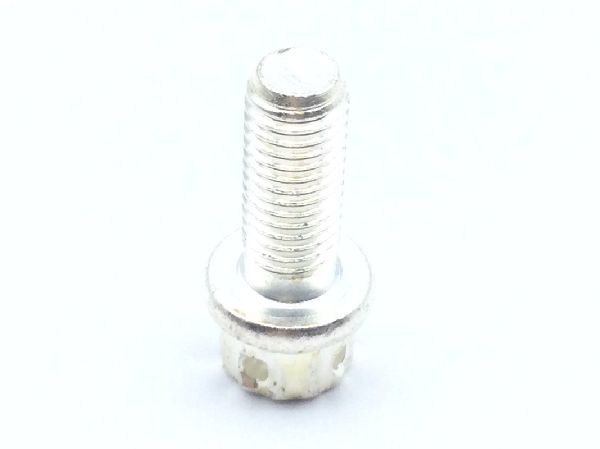

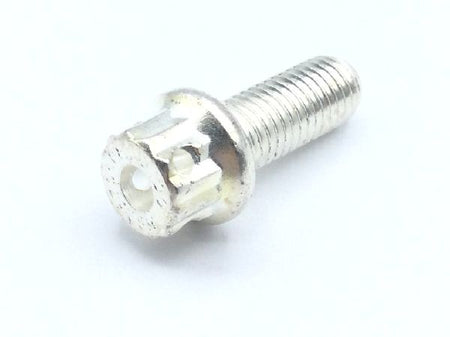

MS9575-08 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Iron alloy 660

Surface Treatment

Ams 2411 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: 0.060 inches
Fastener Length: 0.625 inches
Head Height: 0.300 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5731 assn standard single material response
Precious Material: Silver
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.526 inches and 0.546 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.312 inches
Hole Diameter: 0.070 inches
