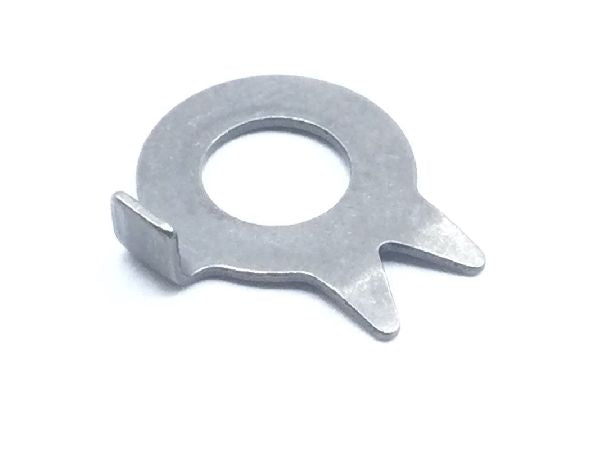

MS9582-09 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $2.73

Units per Pack 20

Price per Pack $54.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $54.60

Add item to quote

Angle Between External Keys: Between 58.0 degrees and 62.0 degrees
Distance From Centerline To Inside Of Prebent Key: Between 0.221 inches and 0.231 inches
External Prebent Key Angle: 15.0 degrees
External Prebent Key Length: Between 0.095 inches and 0.105 inches
External Prebent Key Width: Between 0.11 inches and 0.115 inches
External Tapered Key Width: Between 0.20 inches and 0.21 inches
Iii Material: Steel comp 321
Material Specification: Ams5510 assn standard single material response
Material Thickness: Between 0.019 inches and 0.025 inches
Outside Diameter: Between 0.37 inches and 0.38 inches
Style Designator: 270 degree locking key
Hole Diameter: 0.190 inches
