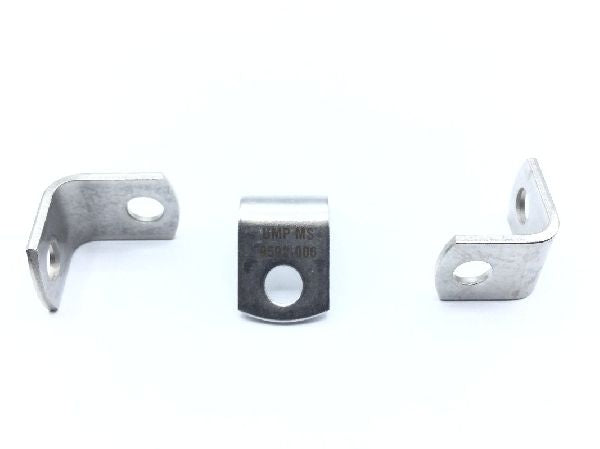

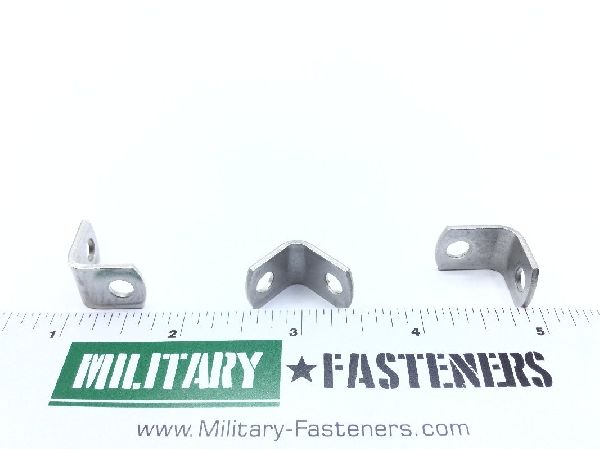

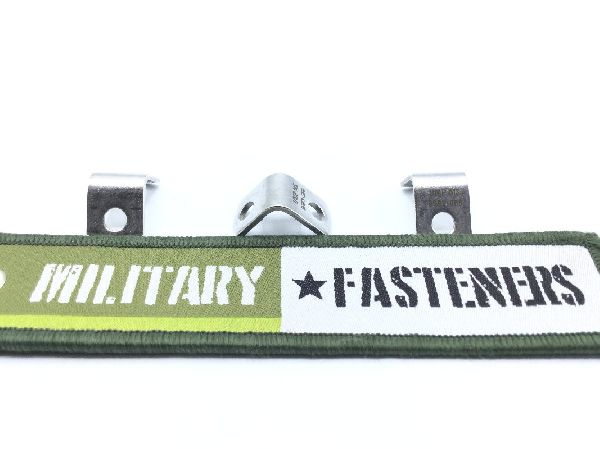

MS9592-006 Angle Bracket
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 8302.50.0000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- First Leg Angle
- 90.0 degrees
- First Leg Distance From Edge To Hole Center Along Length
- Between 0.195 inches and 0.205 inches
- First Leg Distance From Edge To Hole Center Along Width
- Between 0.245 inches and 0.255 inches
- First Leg End Radius
- 0.500 inches
- First Leg Hole Arrangement Style
- One hole
- First Leg Hole Diameter
- Between 0.200 inches and 0.210 inches
- First Leg Length
- Between 0.633 inches and 0.643 inches
- First Leg Style
- End radius
- First Leg Thickness
- Between 0.056 inches and 0.068 inches
- First Leg Width
- 0.500 inches
- Material Specification
- Ams 5510 assn standard single material response
- Second Leg Distance From Edge To Hole Center Along Length
- Between 0.195 inches and 0.205 inches
- Second Leg Distance From Edge To Hole Center Along Width
- Between 0.210 inches and 0.245 inches
- Second Leg End Radius
- 0.500 inches
- Second Leg Hole Arrangement Style
- One hole
- Second Leg Hole Diameter
- Between 0.200 inches and 0.210 inches
- Second Leg Length
- Between 0.695 inches and 0.705 inches
- Second Leg Relationship To First Leg
- Not identical
- Second Leg Style
- End radius
- Second Leg Thickness
- Between 0.056 inches and 0.068 inches
- Second Leg Width
- 0.500 inches
- Style Designator
- Angle
