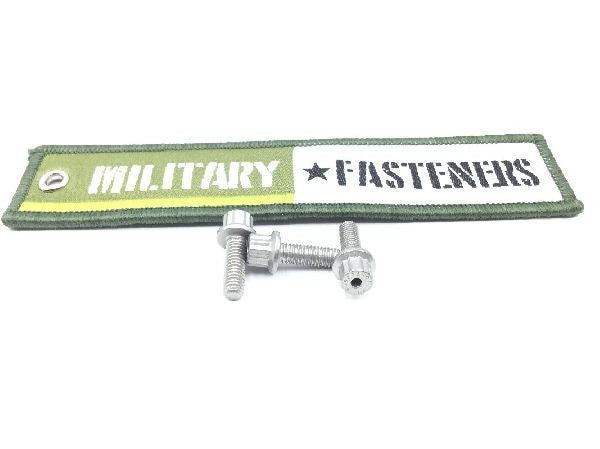

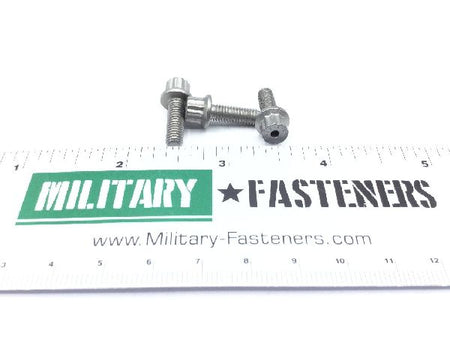

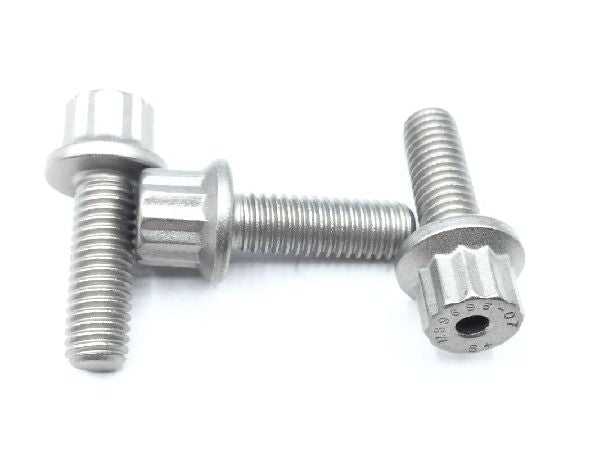

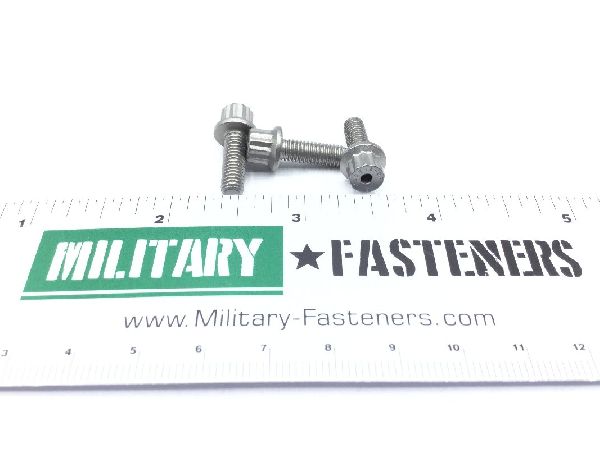

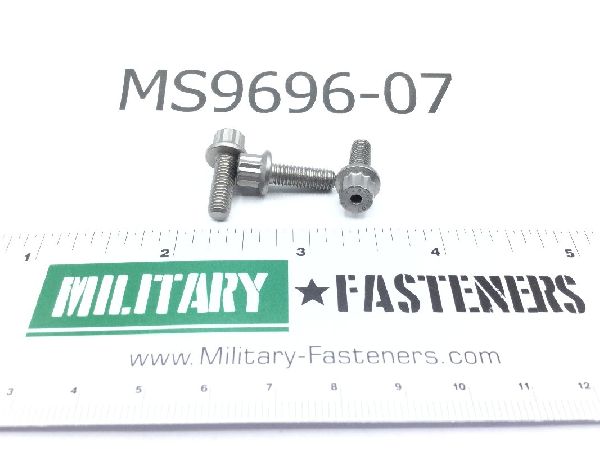

MS9696-07 Machine Bolt

NSN: 5306-00-150-3350
Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.39

Units per Pack 5

Price per Pack $51.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.95

Add item to quote

Head Style

Double hexagon w/hole

Material

Nickel alloy

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: 0.562 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.072 inches and 0.092 inches
Hardness Rating: 32.0 rockwell c and 42.0 rockwell c
Head Height: 0.258 inches
Material Specification: Ams 5708 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.470 inches and 0.490 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.243 inches and 0.251 inches
