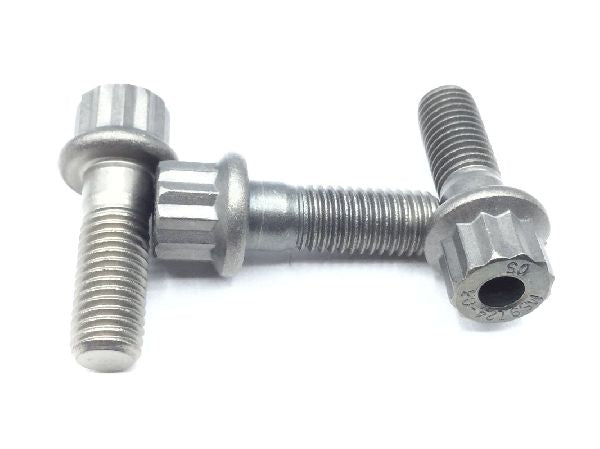

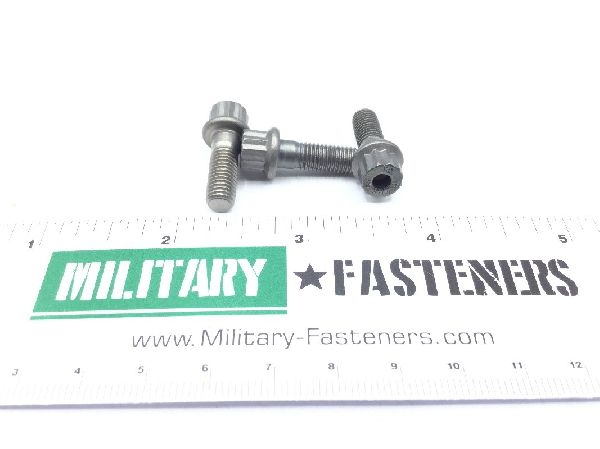

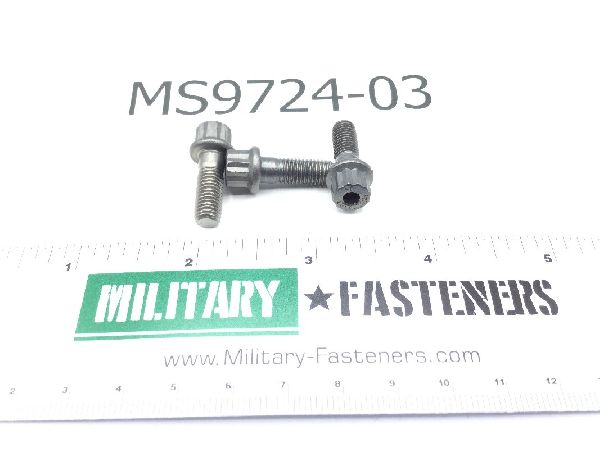

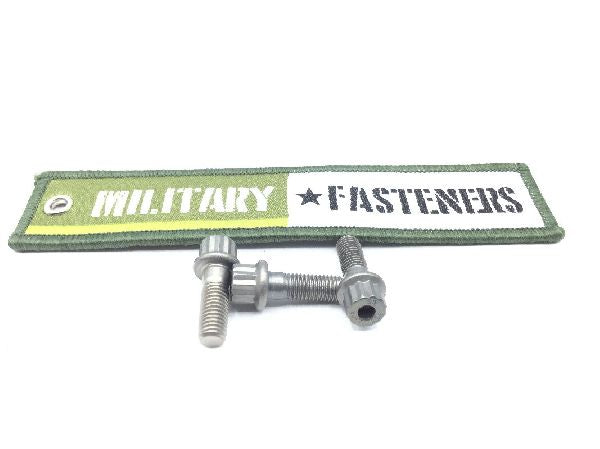

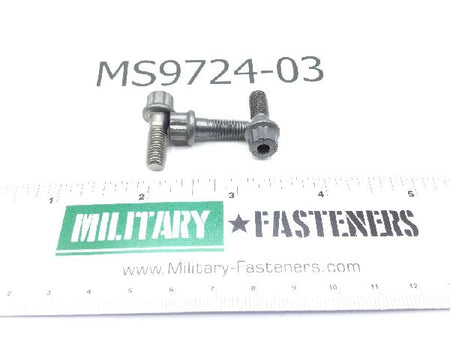

MS9724-03 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon extended washer

Material

Nickel alloy uns n07001

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: 0.6 inches
Fastener Length: 0.7 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.117 inches and 0.198 inches
Head Height: 0.303 inches
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.502 inches and 0.583 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.3125 inches
