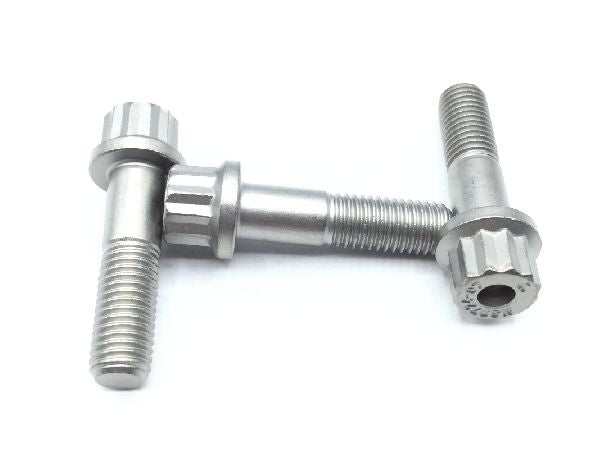

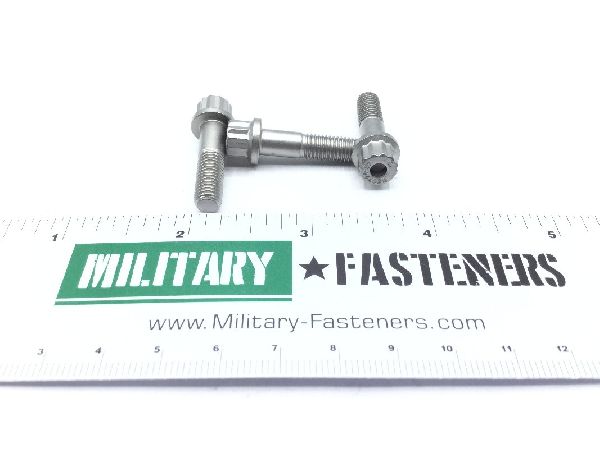

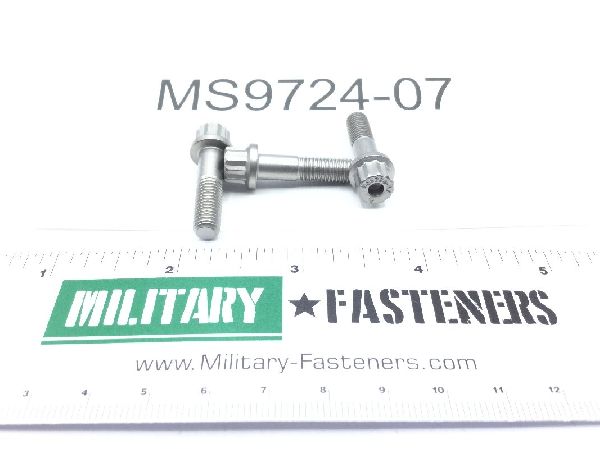

MS9724-07 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $17.25

Units per Pack 5

Price per Pack $86.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $86.25

Add item to quote

Head Style

Double hexagon extended washer

Material

Nickel alloy

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: 0.060 inches
Fastener Length: 0.950 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 34.0 rockwell c and 44.0 rockwell c
Head Height: 0.303 inches
Material Specification: Ams5708 assn standard single material response
Min. Tensile Strength (psi): 175000 pounds per square inch
Minimum Yield Strength: 115000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.502 inches and 0.583 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.312 inches
