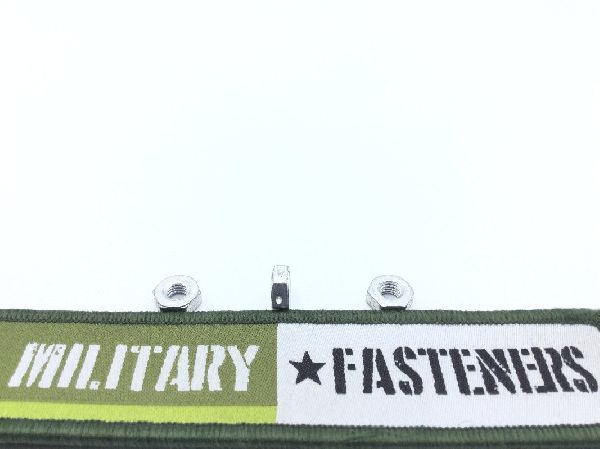

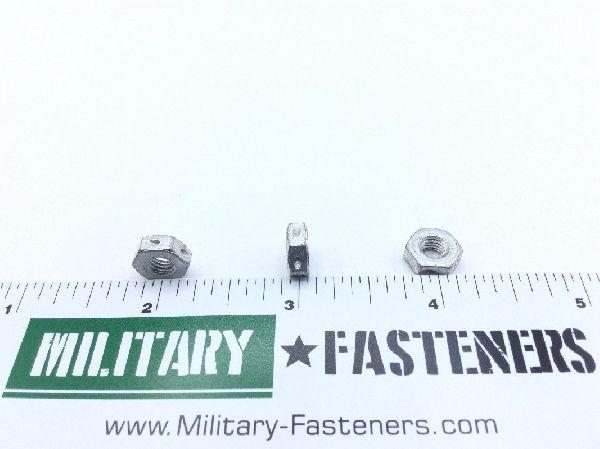

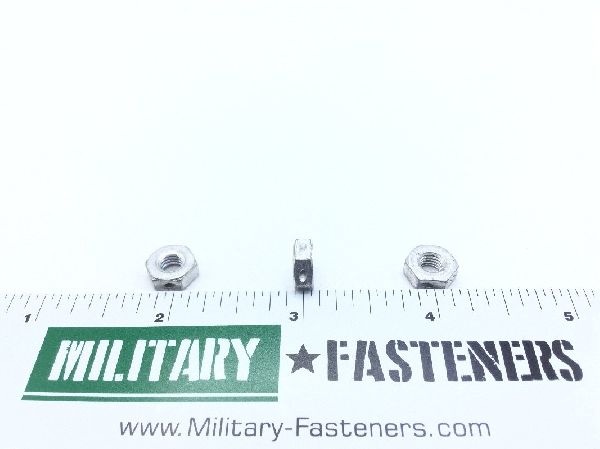

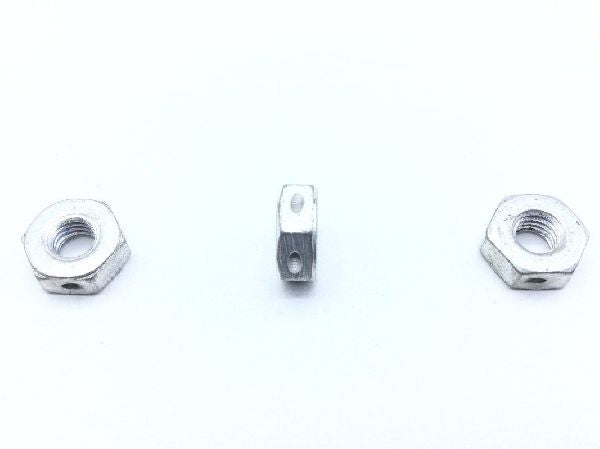

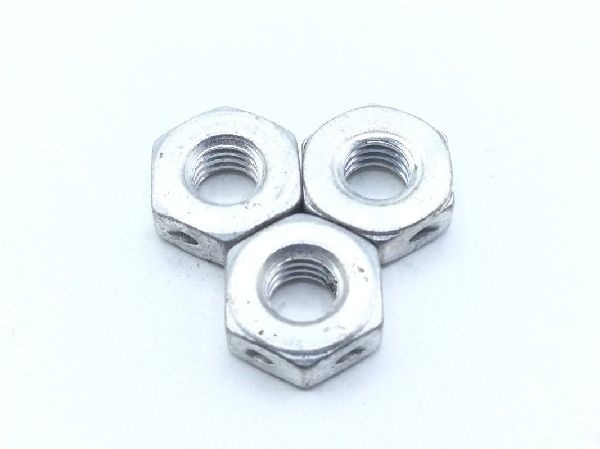

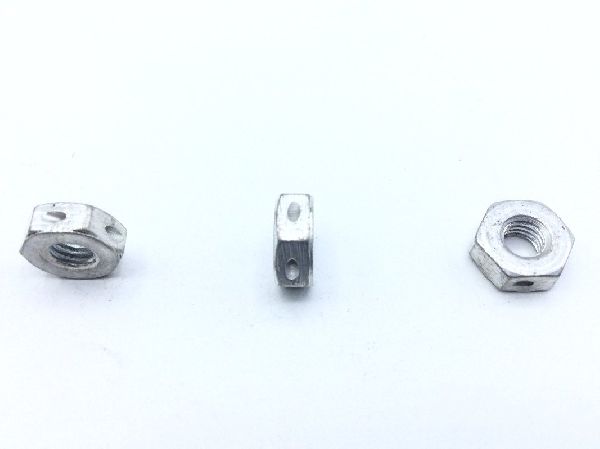

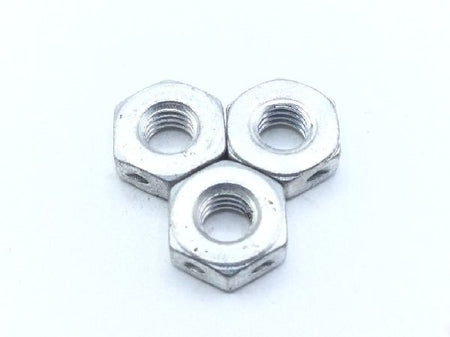

MS9882-09 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $12.95

Units per Pack 5

Price per Pack $64.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $64.75

Add item to quote

Material

Steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Finish: 63.0 microinches
Bearing Surface Type: Washer faced
Countersink Angle: 90.0 degrees nut
Drilled Hole Diameter: 0.047 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 2 drilled
Material Specification: Ams 6322 assn standard single material response
Nut Height: 0.156 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.367 inches and 0.376 inches
