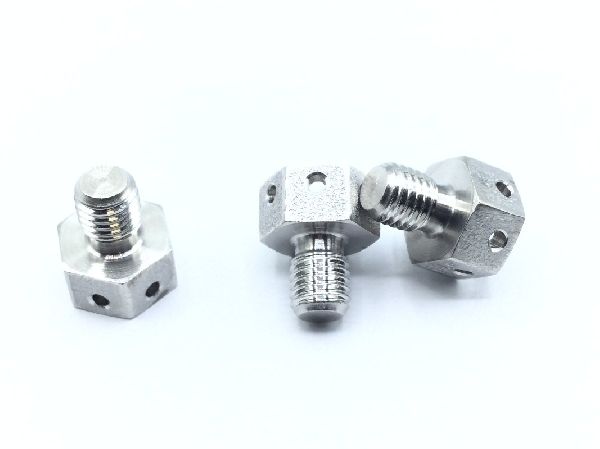

MS9902-01 Plug Button

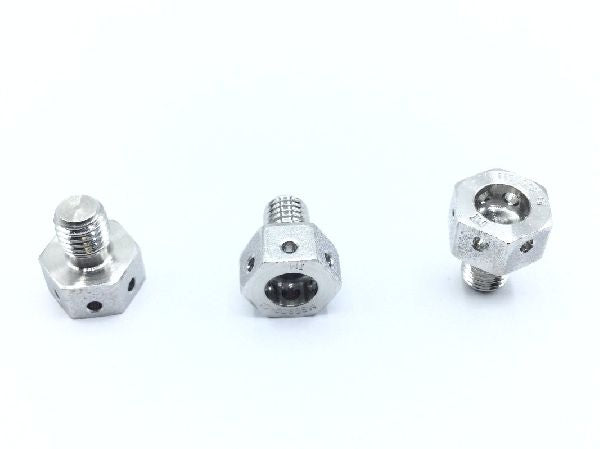

MS9902-01 Plug Button (2)

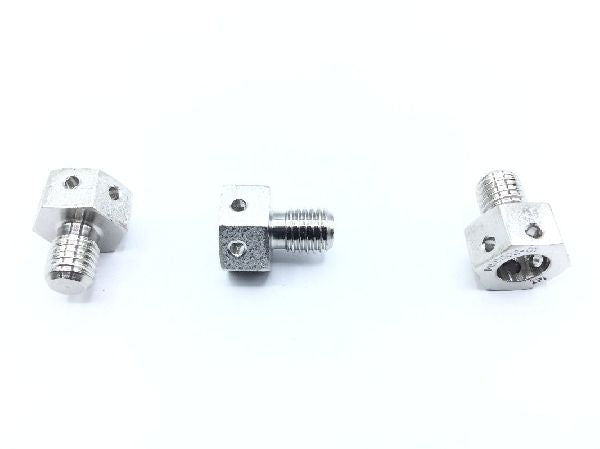

MS9902-01 Plug Button (3)

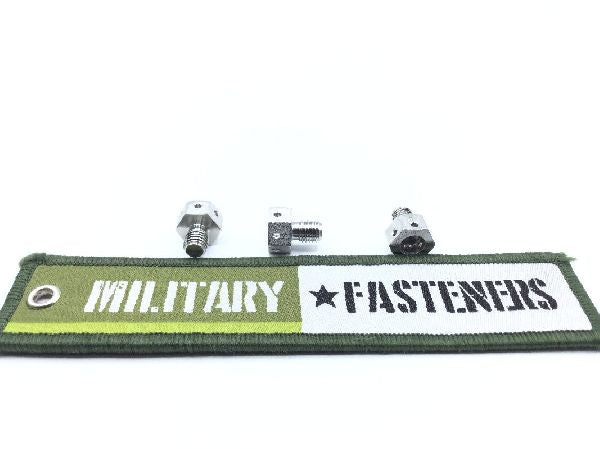

MS9902-01 Plug Button (4)

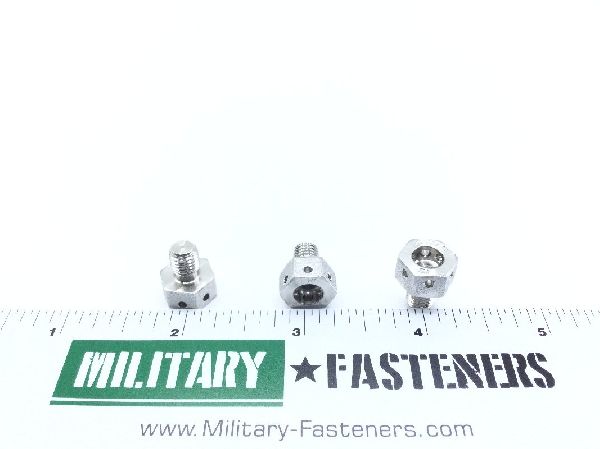

MS9902-01 Plug Button (5)

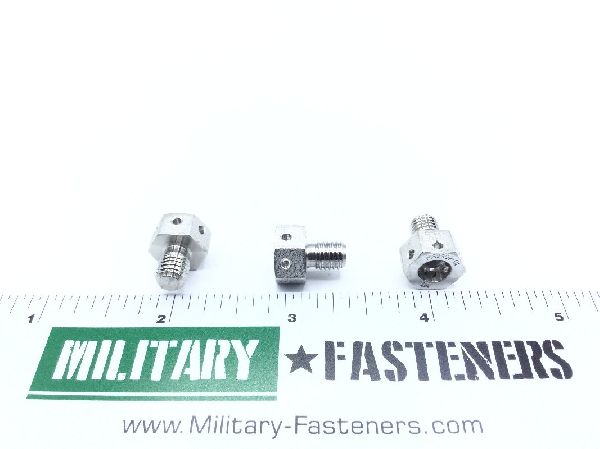

MS9902-01 Plug Button (6)
MS9902-01 Plug Button
MS9902-01 Plug Button (2)
MS9902-01 Plug Button (3)
MS9902-01 Plug Button (4)
MS9902-01 Plug Button (5)
MS9902-01 Plug Button (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9902-01 Plug Button

Product Series
MS
ECCN
EAR99
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 347
Overall Length
0.560 inches
Thread Class
3a external
Thread Size
0.250 inches external
Body Type
Solid
Connection Style
Plain
Head Core Diameter
0.250 inches
Head Height
0.240 inches
Head Type
Cored
Material Specification
Ams 5646 assn standard single material response
Style Designator
machine plug
Thread Direction
Right-hand external
Thread Length
0.257 inches external
Thread Series Designator
Unjf (fine thread with external controlled root radius) external
