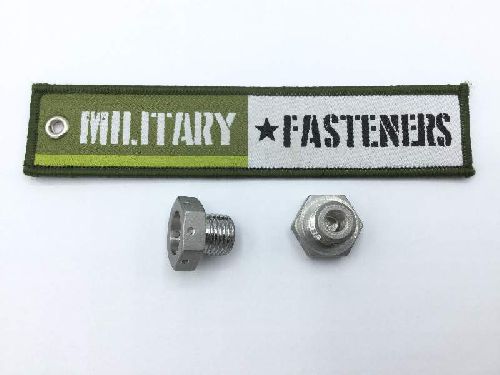

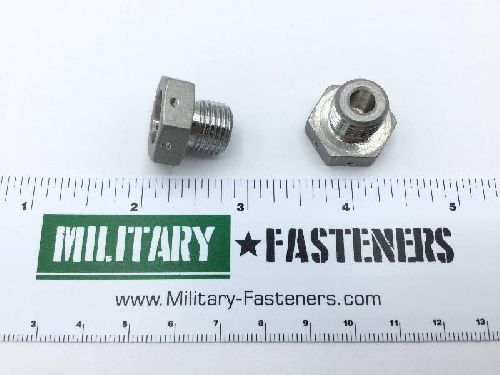

MS9902-05 Plug Button

Product Series: MS
ECCN: EAR99

Price per Unit $48.44

Units per Pack 1

Price per Pack $48.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $48.44

Add item to quote

Material

Steel comp 347

Overall Length

0.670 inches

Thread Class

3a external

Thread Size

0.500 inches external

Body Core Diameter: 0.219 inches
Body Type: Cored
Connection Style: Plain
Core Depth: 0.340 inches
Head Core Diameter: 0.500 inches
Head Height: 0.270 inches
Head Type: Cored
Material Specification: Ams 5646 assn standard single material response
Style Designator: machine plug
Thread Direction: Right-hand external
Thread Length: 0.310 inches and 0.325 inches external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
