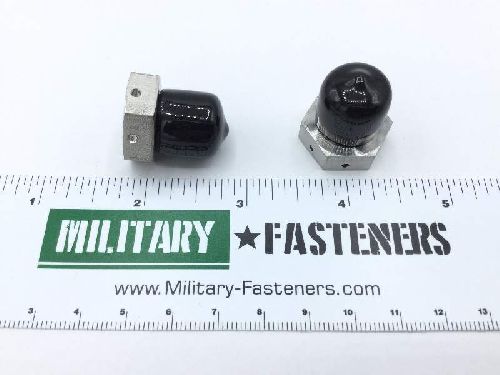

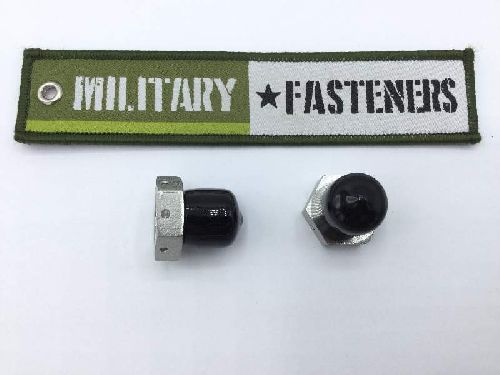

MS9902-06 Plug Button

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $23.10

Units per Pack 2

Price per Pack $46.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $46.20

Add item to quote

Material

Steel comp 347

Overall Length

0.680 inches

Thread Class

3a external

Thread Size

0.562 inches external

Body Core Diameter: 0.219 inches
Body Type: Cored
Connection Style: Plain
Core Depth: 0.340 inches
Head Core Diameter: 0.842 inches
Head Height: 0.280 inches
Head Type: Cored
Material Specification: Ams 5646 assn standard single material response
Seat Angle: 45.0 degrees
Style Designator: machine plug
Thread Direction: Right-hand external
Thread Length: 0.400 inches external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
