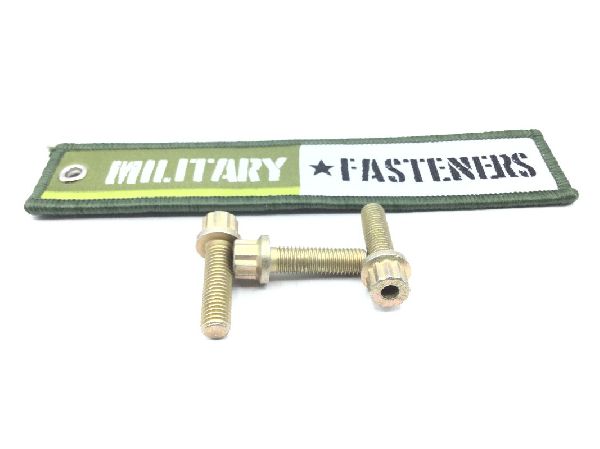

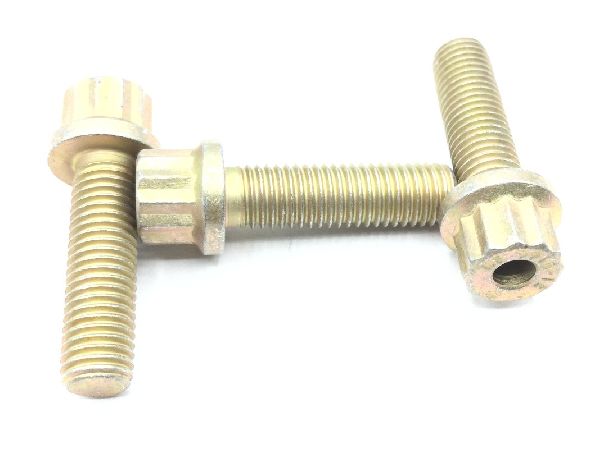

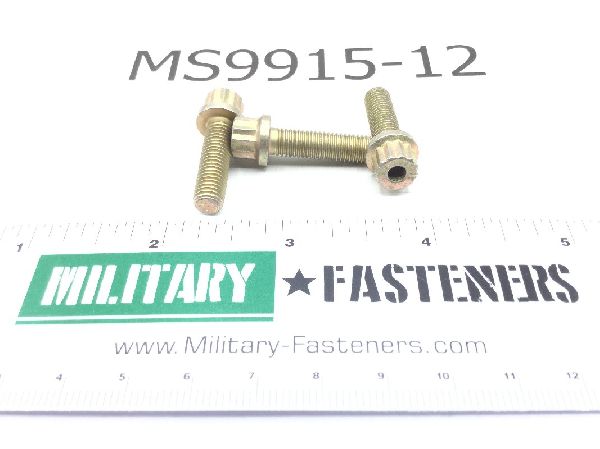

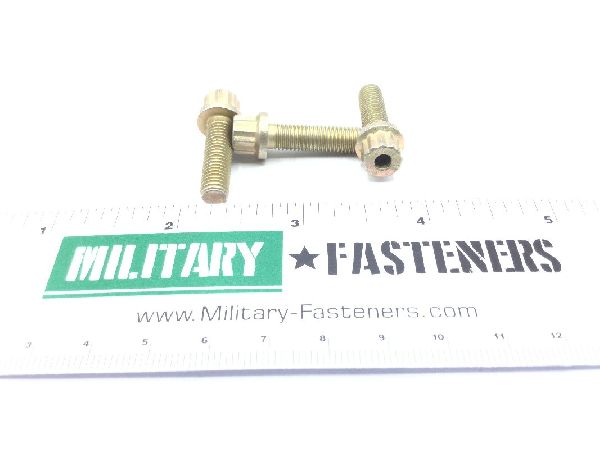

MS9915-12 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel comp 8740

Surface Treatment

Ams2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.448 inches
Extended Washer Thickness: 0.06 inches
Fastener Length: Between 0.865 inches and 0.885 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.079 inches and 0.125 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.293 inches and 0.313 inches
Material Specification: Ams6322 assn standard single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.740 inches and 0.806 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.302 inches and 0.322 inches
