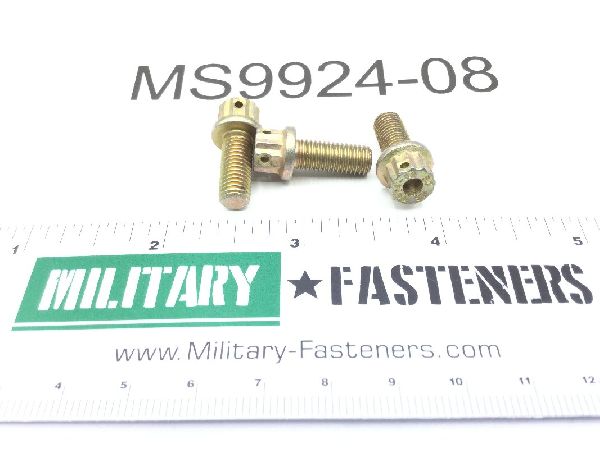

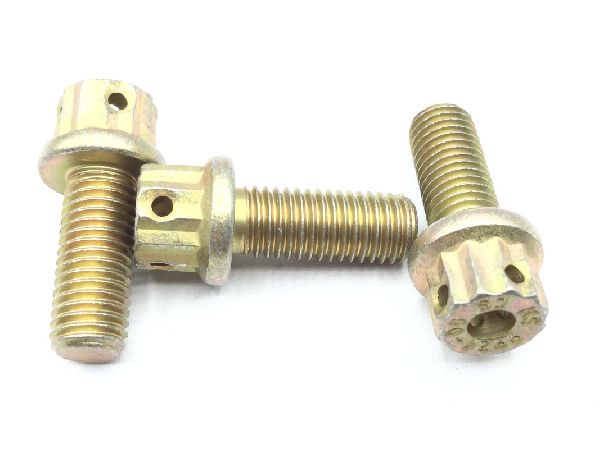

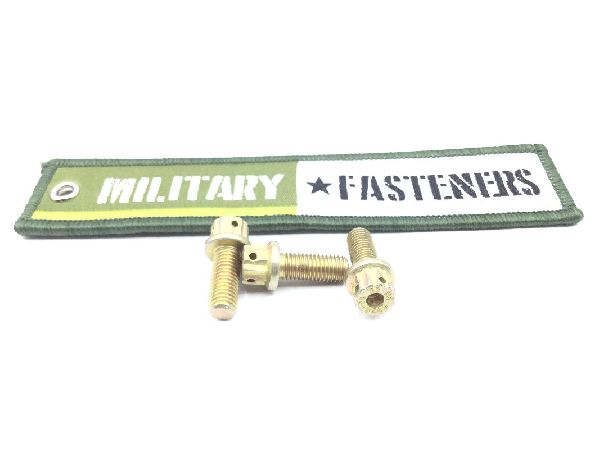

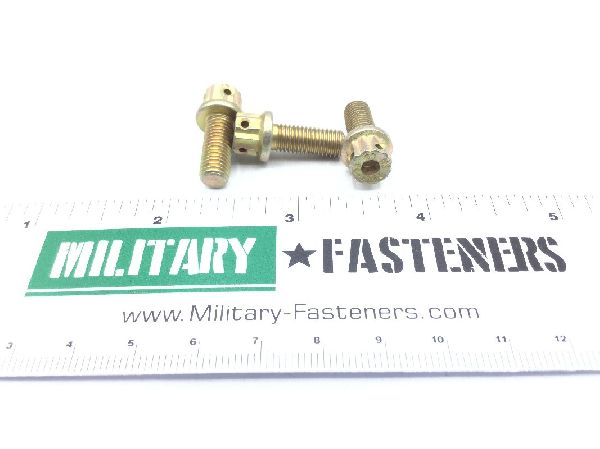

MS9924-08 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.68

Units per Pack 10

Price per Pack $56.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $56.80

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.448 inches
Extended Washer Thickness: 0.060 inches
Fastener Length: Between 0.615 inches and 0.635 inches
Grip Length: Between 0.079 inches and 0.099 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.293 inches and 0.313 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.516 inches and 0.556 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.302 inches and 0.322 inches
Hole Diameter: Between 0.060 inches and 0.070 inches
