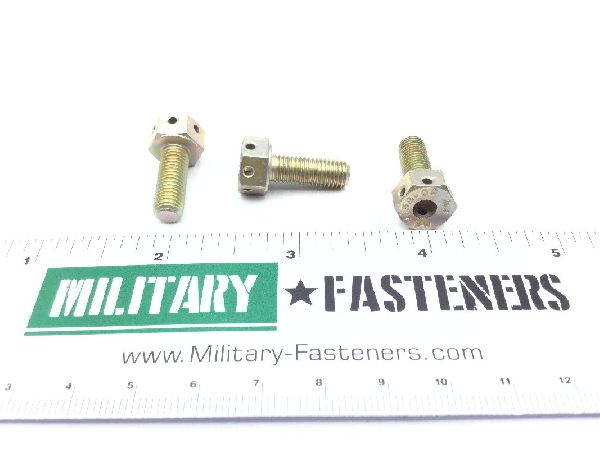

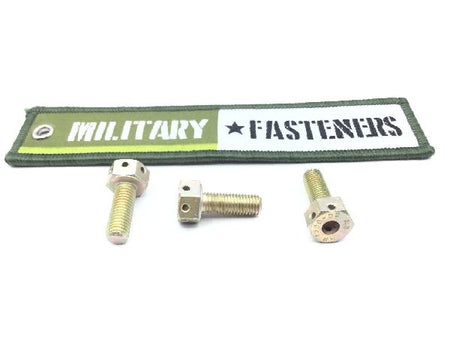

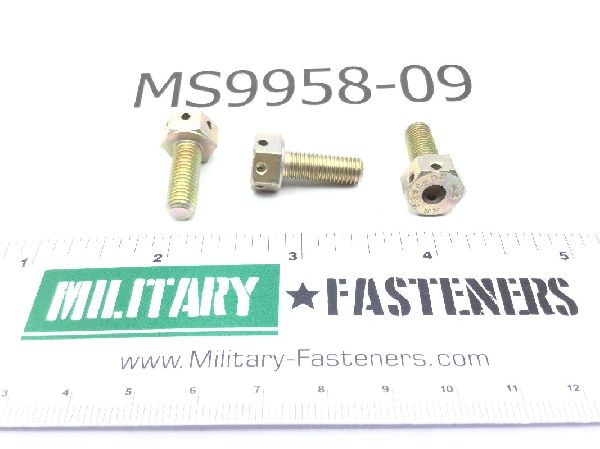

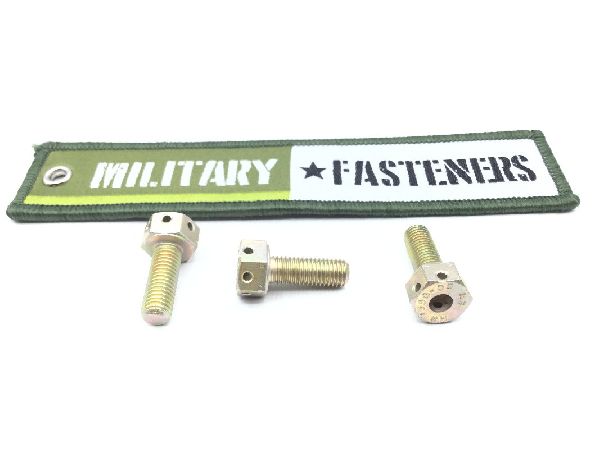

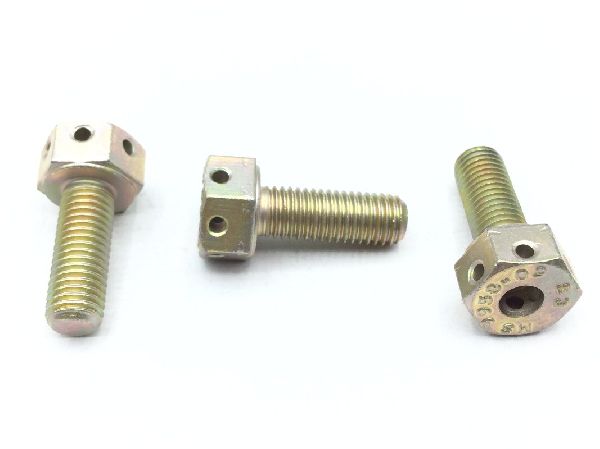

MS9958-09 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $9.63

Units per Pack 5

Price per Pack $48.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.15

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Fastener Length: 0.688 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.250 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 6
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.589 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.070 inches
