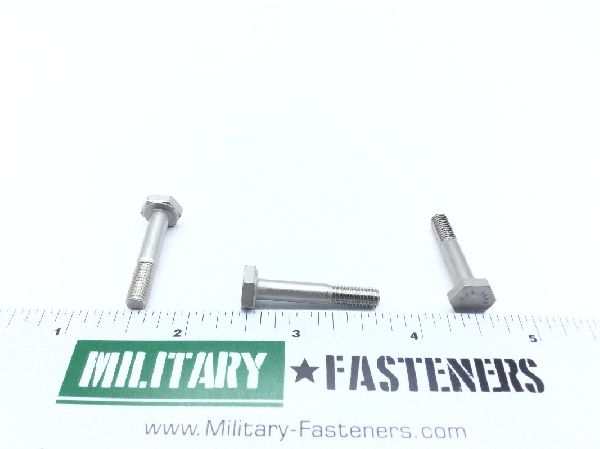

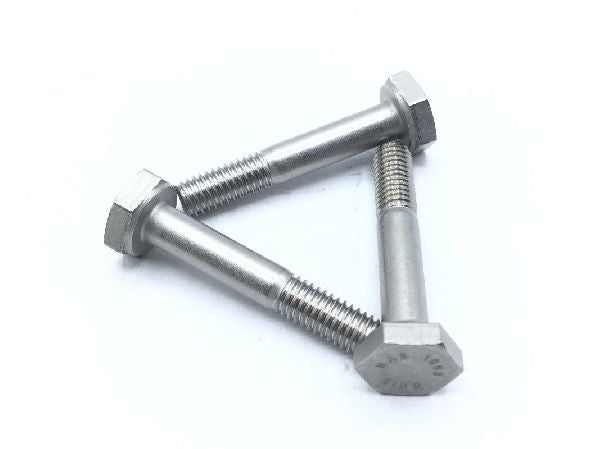

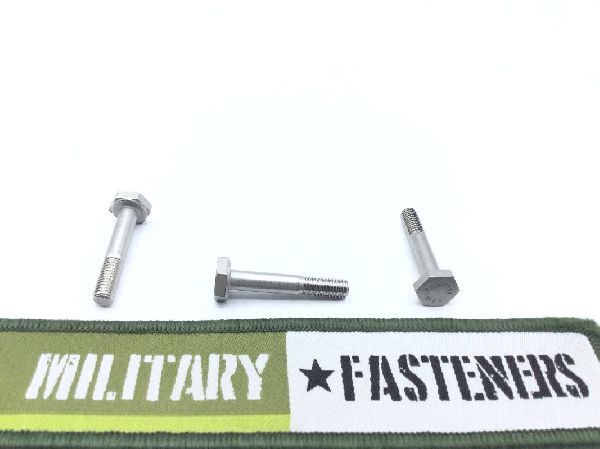

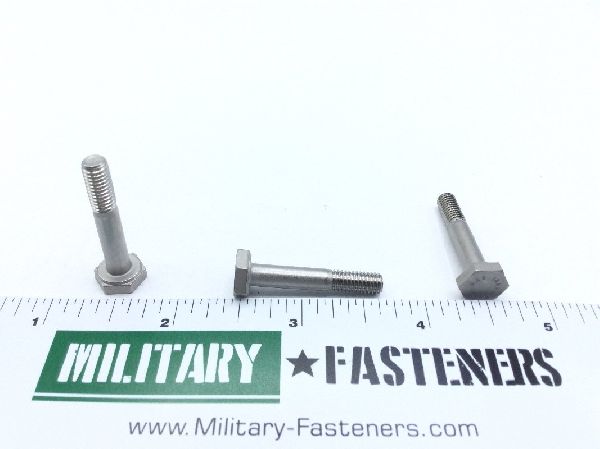

NAS1003-10A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.43

Units per Pack 10

Price per Pack $44.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $44.30

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: Between 1.091 inches and 1.121 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.610 inches and 0.640 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Ams 5732 assn standard 1st material response or ams 5737 assn standard 1st material response or ams 5733 assn standard 2nd material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Specification Data: 80205-nas1003 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.451 inches and 0.511 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
