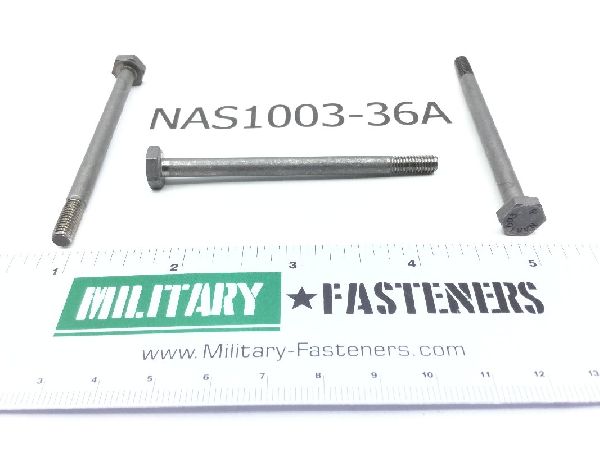

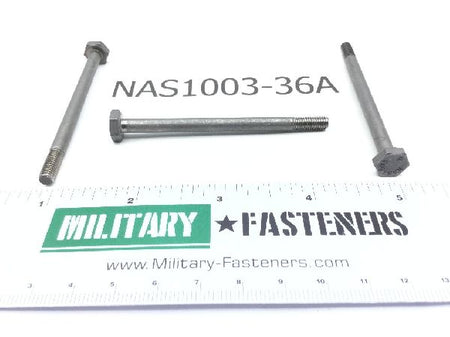

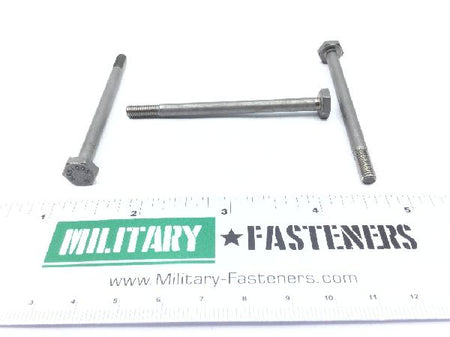

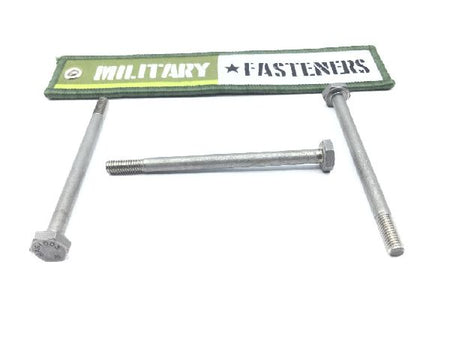

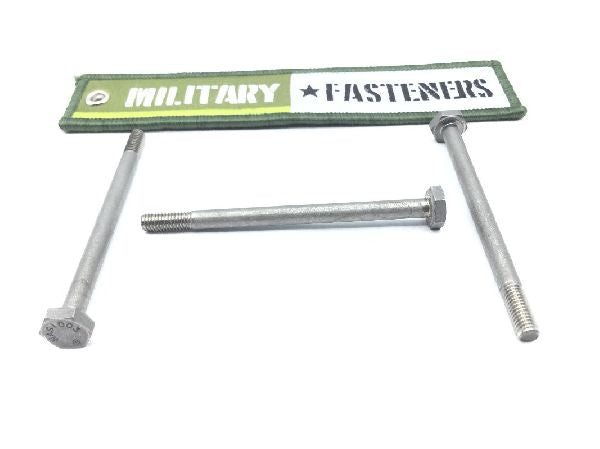

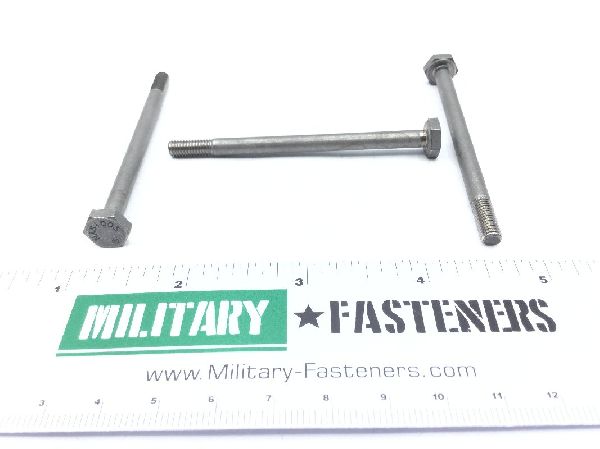

NAS1003-36A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: 2.731 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 2.25 inches
Head Height: 0.125 inches
Material Specification: Ams5732 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Special Features: Tensile strength at room temperature
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.481 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
